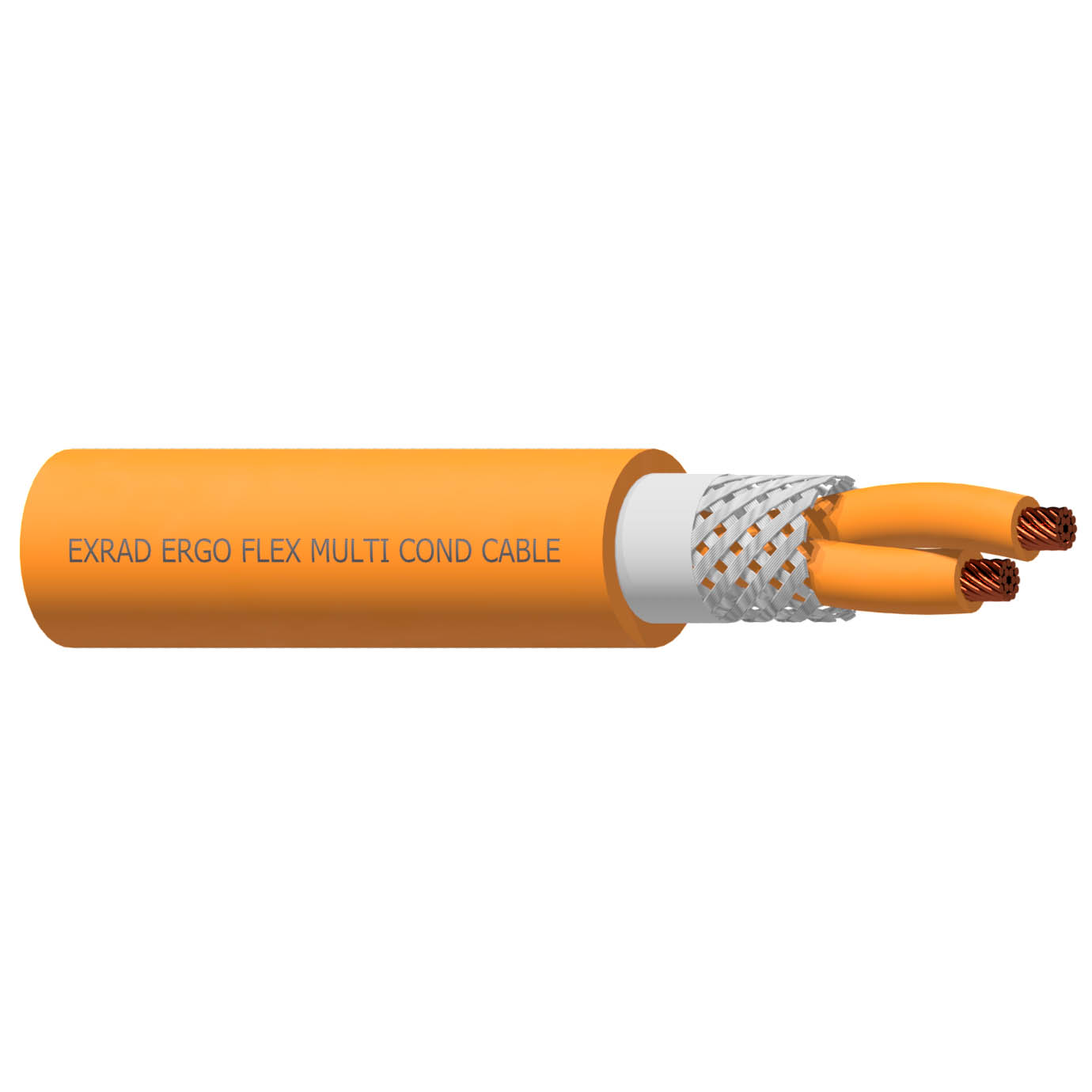

Electric & Hybrid Vehicle Battery Cable, 1.5MM2, 2C, ALUMINUM FOIL AND TINNED COPPER BRAID, 1kV, EXRAD ERGO-FLEX Insulated, Orange

000000000032129619 MFG #: DWG 18048
Requires Quote
Quote Required
Electric & Hybrid Vehicle Battery Cable, 1.5MM2, 2C, ALUMINUM FOIL AND TINNED COPPER BRAID, 1kV, EXRAD ERGO-FLEX Insulated, Orange
  • # of Conductors: 2
  • Armor Type: NONE
  • Color: ORANGE
  • Conductor Metal: BARE COPPER
  • Conductor Shielding Type: UNSHIELDED
  • Conductor Type: STRANDED
  • Gauge Size: 1.5MM2
  • Insulation Material: EXRAD ERGO-FLEX
  • Jacket Material: EXRAD ERGO-FLEX
  • Manufacturer: Champlain Cable
  • Overall Shielding Type: ALUMINUM FOIL AND TINNED COPPER BRAID
  • Stranding: 19
  • Supplier Series: EXRAD ERGO-FLEX™
  • Temperature: 150C
  • Voltage: 1kV
