Cable Crimping Tools

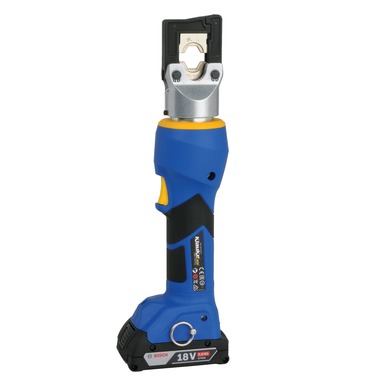

Klauke EK 35/4 Battery-Powered Crimping Tool
The Klauke EK 35/4 is a compact, battery-powered hydraulic crimping tool designed for efficient crimping of copper and aluminum conductors up to 150 mm². With a slimline head and ergonomic design, this tool delivers powerful performance in confined spaces—ideal for industrial, utility, and panel-building applications.
Key Features:
- Lightweight, one-handed operation with balanced center of gravity
- Closed hydraulic system with automatic piston retraction
- High-performance 10.8V Li-Ion battery with LED charge indicator
Specifications:
- Crimping range: 6–150 mm²
- Crimping force: 35 kN
- Stroke: 14 mm
- Weight (including battery): approx. 2.1 kg

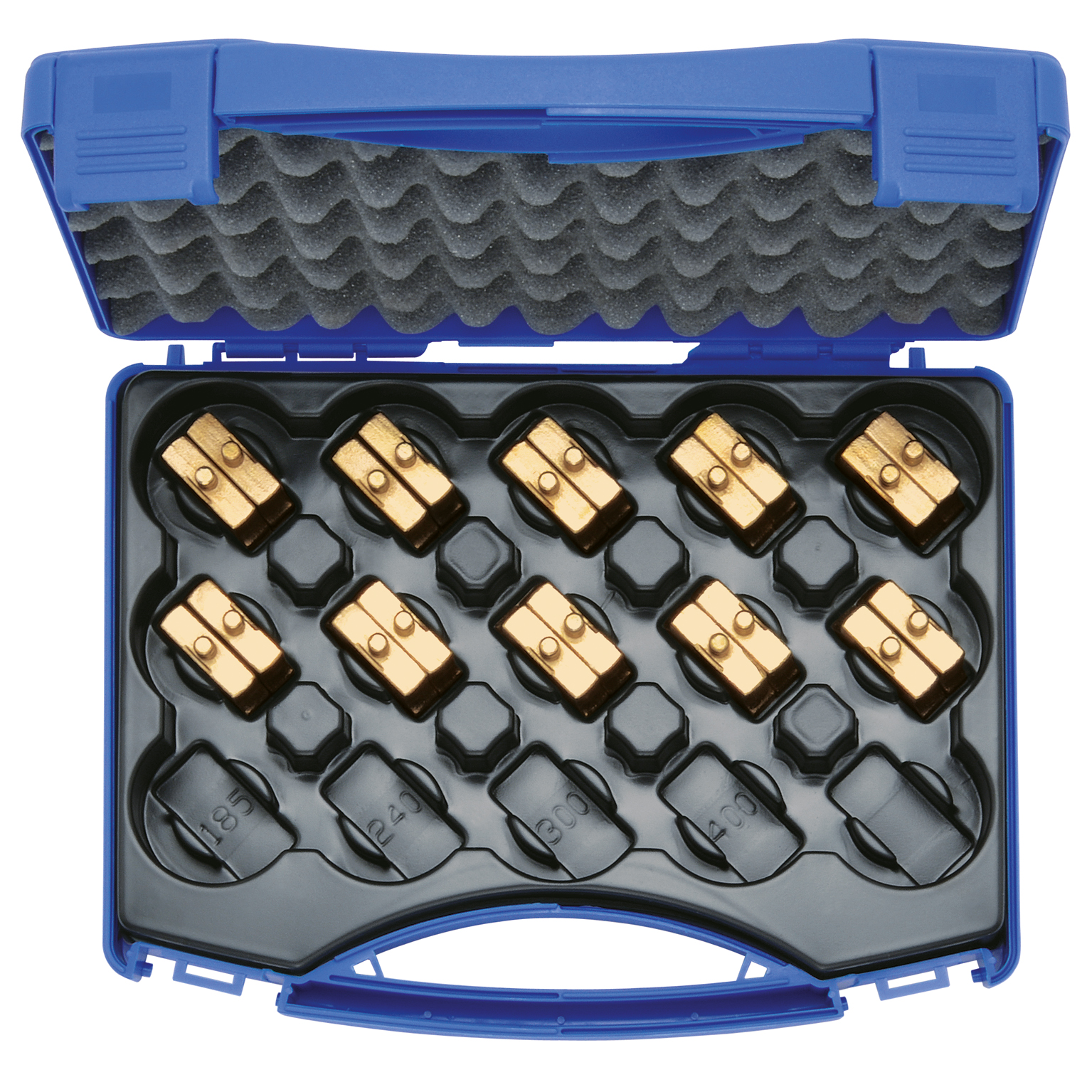

Klauke HL4SET 11‑Piece Hexagonal Crimping Die Set
Premium die set in a durable case, designed for use with Klauke 4‑series crimping tools like the EK 35/4, delivering reliable, industrial-grade crimps on copper tubular lugs and connectors.
Key Features:
- Comprehensive range from 6 to 150 mm²
- Hexagonal crimp profile ensures strong, low-resistance connections
- Robust plastic carry case keeps dies organized and protected on-site
Specifications:
- Pack contents: 11 dies (6, 10, 16, 25, 35, 50, 70, 95, 120, 150 mm²) plus case
- Crimp width: 5 mm
- Compatible tools: Klauke 4-series battery and hydraulic tools

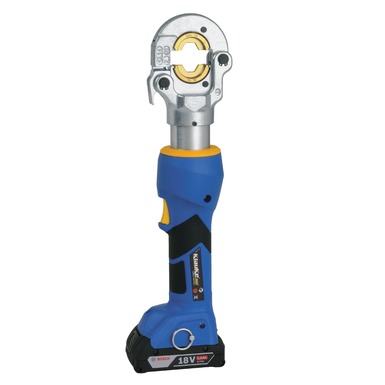

Klauke EKM 60/22 Battery‑Powered Crimping Tool
Versatile and robust, the EKM 60/22 delivers 60 kN of hydraulic force for precise crimping of cable lugs from 6 to 300 mm². With interchangeable Bosch or Makita 18 V batteries and Bluetooth connectivity, it's designed for efficient, heavy-duty field use.
Key Features:
- 60 kN hydraulic force for dependable crimping of medium to large conductors
- U‑shaped, rotatable head with flip-top design for easy die changes
- Automatic Retraction Stop (ARS) for faster operation and energy savings
Specifications:
- Crimping range: 6–300 mm²
- Crimping force: 60 kN
- Stroke: 17.5 mm
- Weight (including battery): approx. 3.0 kg

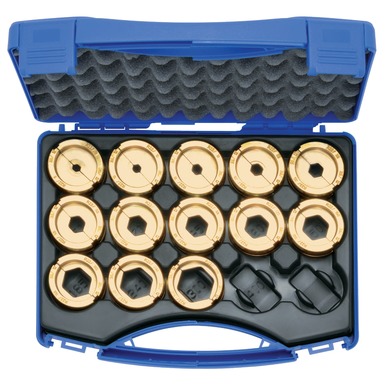

Klauke L22SET 14-Piece Hexagonal Crimping Die Set
Comprehensive die pack designed for Klauke 22‑series crimping tools, offering a full range for copper tubular cable lugs and switchgear connectors.
Key Features:
- Hexagonal crimp profile ensures solid, low-resistance connections
- Complete size coverage from 6 to 300 mm² in a single set
- Robust plastic carry case keeps dies organized and protected on-site
Specifications:
- Pack contents: 14 dies plus case
- Crimp width: 5 mm
- Compatible tools: Klauke 22-series battery and hydraulic tools
Klauke EK 120/32 Battery‑Powered Hydraulic Crimping Tool
A powerful, all-in-one solution for cable crimping, the EK 120/32 delivers 120 kN of hydraulic force to crisply and consistently crimp copper and aluminum connectors from 16 mm² up to 400 mm².
Key Features:
- 120 kN hydraulic crimp ensures strong, low-resistance connections
- Handles conductors from 16 mm² to 400 mm² in a single tool
- U-shaped, rotatable head with LED light and balanced center of gravity for fatigue-free use
Specifications:
- Crimping range: 16–400 mm²
- Crimping force: 120 kN
- Stroke: 32 mm
- Weight (including battery): approx. 6.8 kg

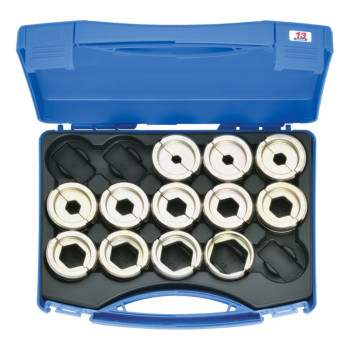

Klauke HL13SET Crimping Die Set
A comprehensive set of hexagonal crimping dies for copper L‑Series cable lugs, designed to deliver precision crimps for conductors ranging from 16 mm² to 400 mm². Compatible with all Klauke 13‑series tools—ideal for professional electrical installations.
Key Features:
- Hexagonal crimp profile for low‑resistance, high‑integrity connections
- Complete size coverage from 16 to 400 mm² in a single set
- Supplied in a sturdy plastic carrying case for convenient transport and organization
Specifications:
- Pack contents: 12 hex dies plus case
- Crimp width: 5 mm
- Compatible tools: Klauke 13-series crimping tools

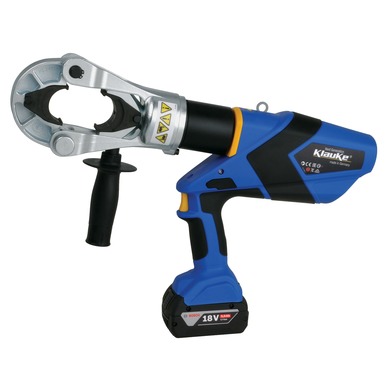

Klauke EK 135FT Battery‑Powered Hydraulic Crimping Tool
Designed for heavy-duty electrical terminations, the Klauke EK 135 FT delivers a powerful 135 kN crimping force across a wide conductor range. Equipped with a closed, rotatable head and smart Bluetooth connectivity, it offers precision, portability, and real-time data feedback for demanding industrial and utility applications.
Key Features:
- High-output 135 kN hydraulic force for large-lug crimping
- Closed, rotatable head for enhanced access in tight environments
- LED work light and ergonomic balance for improved safety and comfort
Specifications:
- Crimping range: 10–630 mm²
- Crimping force: 135 kN
- Stroke: 50.8 mm
- Weight (including battery): approx. 10.2 kg
Klauke HL15500 Crimping Die
Premium hexagonal crimp die designed for use with Klauke 15-series battery-powered hydraulic tools. Built for heavy-duty terminations on copper tubular lugs and connectors, especially in switchgear and power distribution.
Key Features:
- Hexagonal crimp profile for uniform, low-resistance connections on copper L-series cable lugs
- Tailored for 500 mm² conductors in high-current applications
- Robust design for consistent performance in professional environments
Specifications:
- Weight: ~448 g (~0.45 kg)
- Crimp width: 10 mm
- Compatible tools: Klauke 15-series hexagonal crimping tools
Klauke HL15630 Crimping Die
Heavy‑duty crimp insert designed for precision terminations on 630 mm² copper tubular lugs—perfect for high-current switchgear and distribution setups.
Key Features:
- Hexagonal crimp profile for consistent, low-resistance connections
- Tailored specifically for 630 mm² conductor, ensuring exact compatibility and reliable performance
Specifications:
- Nominal cross-section: 630 mm² copper lugs (L-series)
- Crimp profile: Hexagonal, narrow 6‑indent design
- Weight: Approx. 430 g (0.43 kg)
- Compatibility: Fits Klauke 15-series hydraulic and battery crimping tools

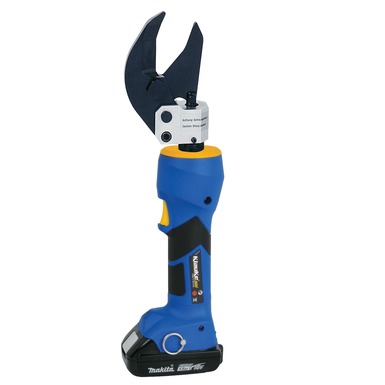

Klauke ES 32 F Battery‑Powered Hydraulic Cutting Tool
The ES 32 F is a compact and lightweight cutting tool purpose-built for cleanly severing fine and superfine-stranded copper cables up to 32 mm in diameter. With a slim, rotatable open head and intuitive one-button control, it's perfect for confined spaces and precision work.
Key Features:
- Slim, rotatable open head: Ideal for working in tight or awkward positions
- One-button control with automatic retraction: Simple, safe, and efficient operation
- Built-in LED light & battery charge indicator
Specifications:
- Cutting range: Up to 32 mm diameter
- Cutting force: 15 kN
- Operating temp range: –10 °C to +40 °C

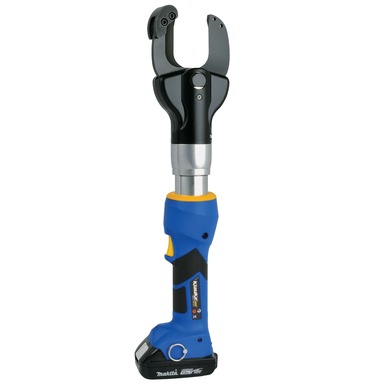

Klauke ESM 50 Battery‑Powered Hydraulic Cutting Tool
The Klauke ESM 50 delivers clean, powerful cuts for copper and aluminium cables—including fine‑stranded and light-armoured types—up to 50 mm in diameter. With an open, rotatable head and Bluetooth-enabled diagnostics, this tool is ideal for confined spaces and professional electrical work.
Key Features:
- Open, rotatable head for easy access in tight or restricted areas
- One-button operation with automatic retraction and manual retract stop
- Balanced in-line grip design, LED illumination, and Bluetooth tool data tracking
Specifications:
- Cutting range: Up to Ø 50 mm
- Cutting force: 38 kN
- Cutting time: 8–10 seconds
- Operating temperature range: –10 °C to +40 °C
Klauke ESG 85 Battery‑Powered Hydraulic Cutting Tool
Heavy-duty, Bluetooth-enabled cutter designed to cleanly slice through copper and aluminium cables (including light steel armouring) up to 85 mm diameter. Features automation and ergonomic design to streamline repeated operations in industrial or utility settings.
Key Features:
- Open, rotatable head with large cutting aperture
- One-button operation: combines fast feed, 2-stage hydraulics, automatic retraction, and manual retract stop
- Integrated LED illumination and display with Bluetooth connectivity
Specifications:
- Cutting range: Up to 85 mm diameter
- Cutting force: 60 kN
- Operating temp range: –10 °C to +40 °C
Need Help?
For assistance, please contact a member of our Infrastructure Team. IEWC’s specialist team would be pleased to visit your site to discuss your specific requirements in person. Call us at 01582 665050, email our team at [email protected], or use the form below!
