Glands
IEWC proudly partners with industry leaders CMP and Cembre to offer a premium selection of industrial cable glands. Engineered for reliability in demanding environments, these glands support both armored and non-armored cables with features like superior strain relief, earth continuity, and IP66/IP68 ingress protection. With high-quality materials including brass, stainless steel, and nylon, this range delivers trusted performance across a wide range of industrial applications - backed by the innovation of CMP and Cembre, and the service excellence of IEWC.

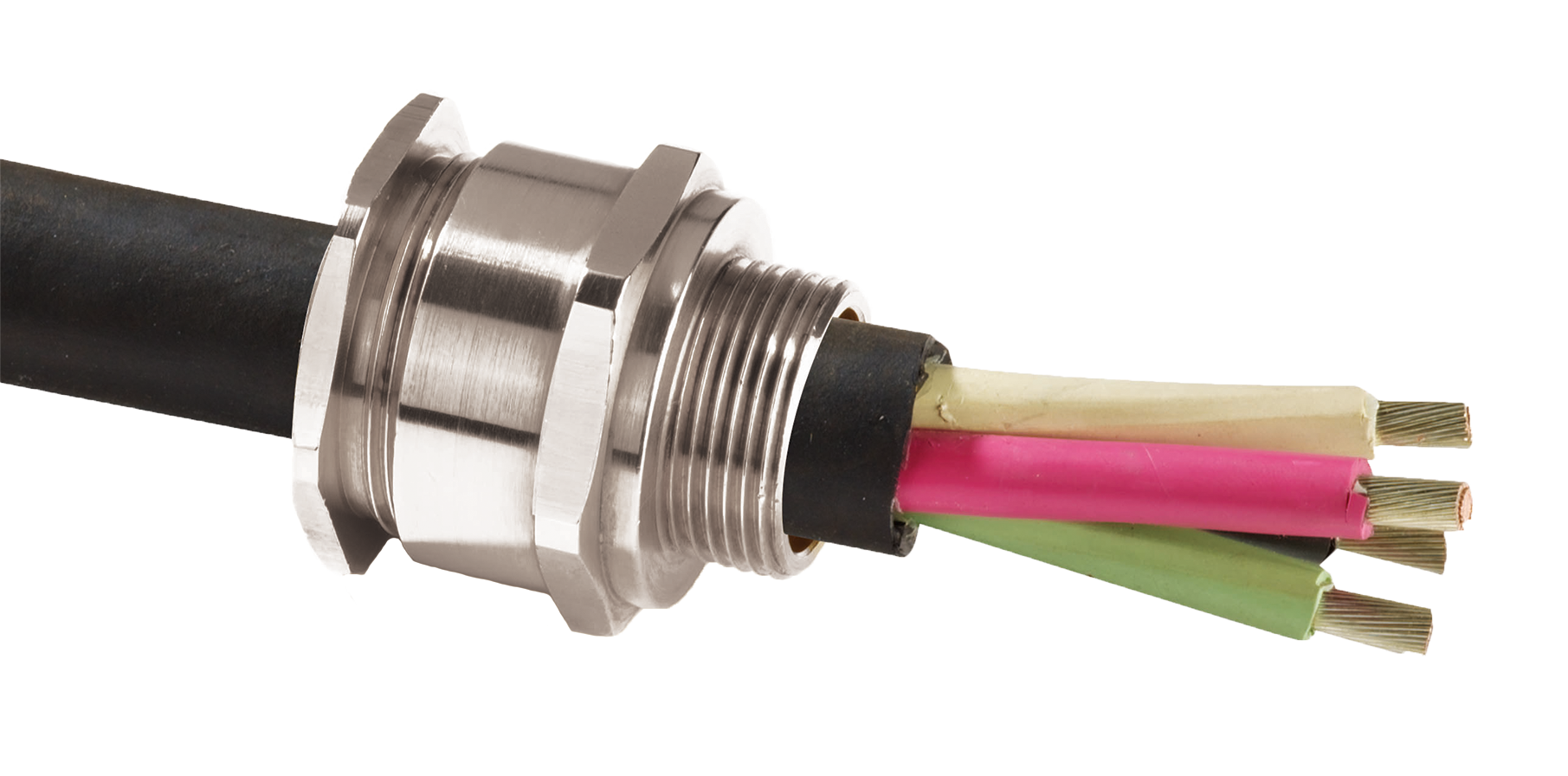

A2 SOLO™ Industrial Cable Gland
Durable single-seal gland for unarmoured and braid-armoured cable. Rated for IP66–68, low smoke, and extreme temperatures - ideal for industrial, marine, and safety-critical applications.
Key Features:
- Designed for unarmoured and braid-armoured cables
- IP66, IP67, and IP68 ingress protection
- Low smoke, halogen-free (LSF) thermoset elastomer seal
Specifications:
- Seal Type: CMP displacement seal (LSF material)
- Temp Range: –60 °C to +130 °C (standard)
- Impact Rating: IK10 (20 joules)

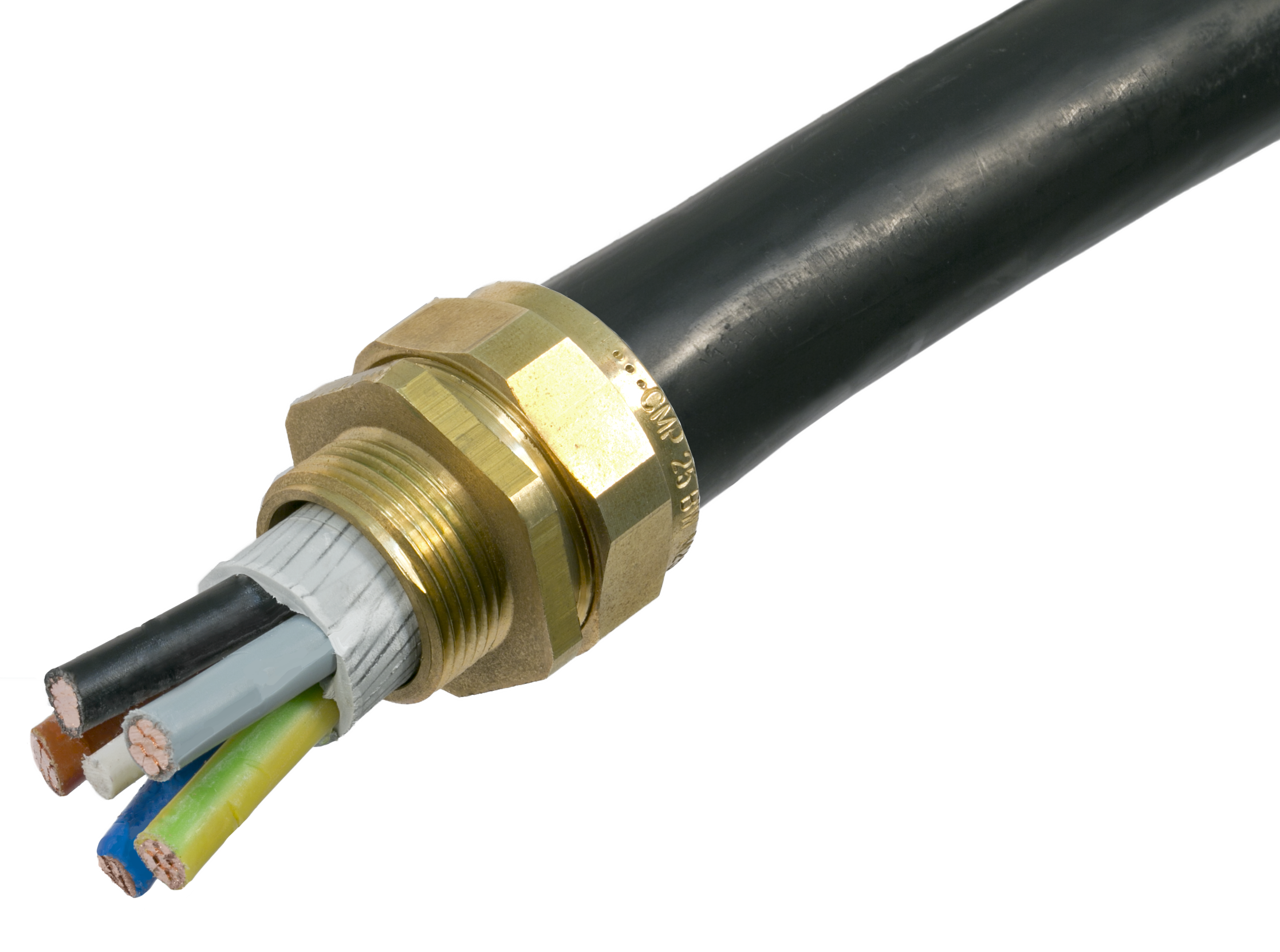

BW SOLO™ Industrial Cable Gland
Heavy-duty single-seal gland for single steel and aluminium wire armoured cables. Rated for extreme conditions, low smoke & fume (LSF), and approved for fire-sensitive environments including London Underground.
Key Features:
- Supports single steel (SWA) & aluminium wire armoured (AWA) cables
- Low Smoke, Fume & Halogen-Free (LSF) elastomer seal
- Superior EMC performance
Specifications:
- Materials: Brass, nickel-plated brass
- Temperature Range: –60 °C to +200 °C
- Impact Rating: IK10 per IEC 62262

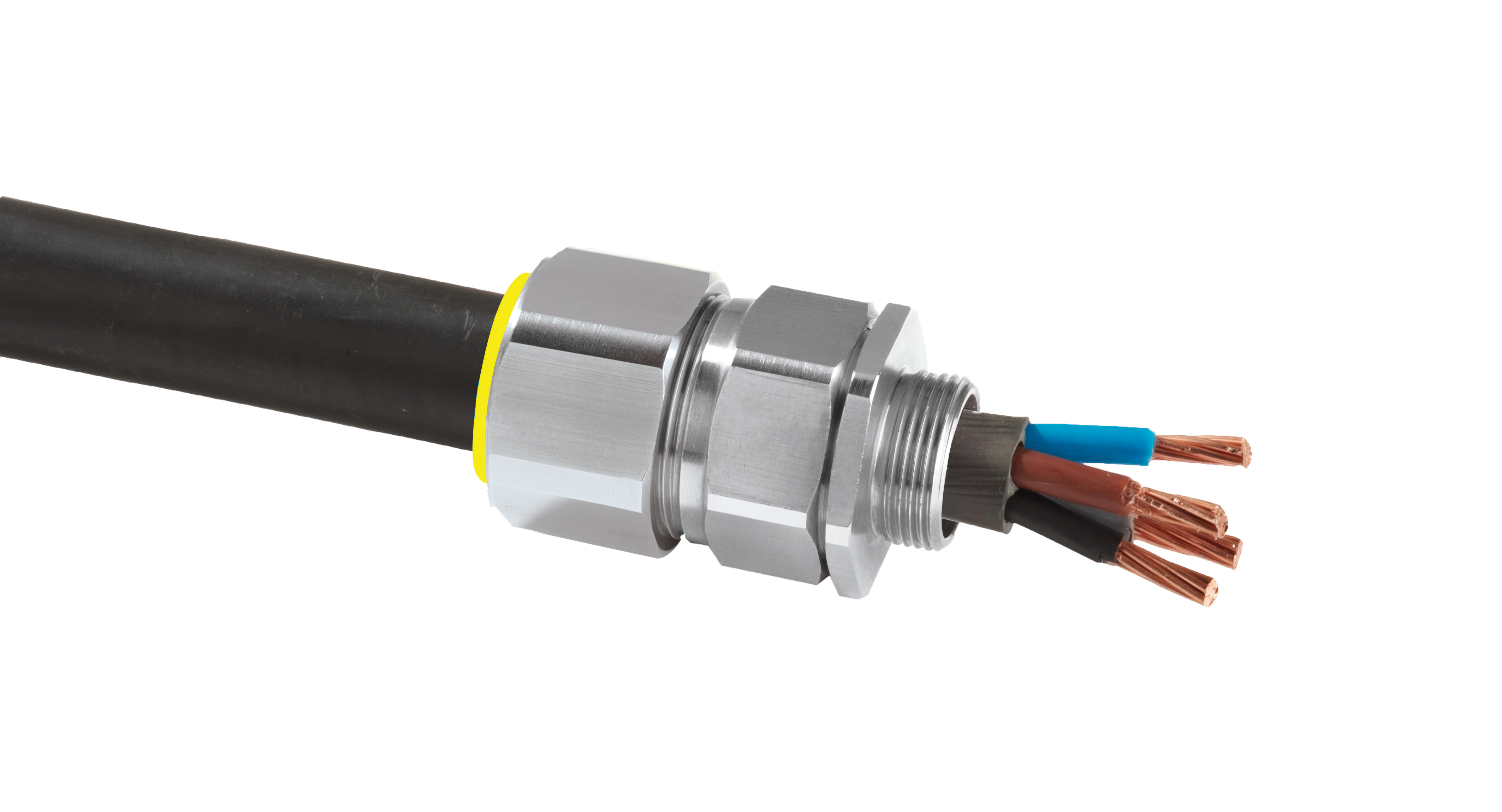

CW SOLO™ Industrial Cable Gland
A robust single-seal gland for single steel and aluminium wire‑armoured cables. Features low‑smoke, halogen‑free sealing, deluge protection, and wide temperature capability - ideal for heavy-duty indoor/outdoor use and approved for safety-critical environments like London Underground.
Key Features:
- Supports SWA & AWA cables
- Low Smoke, Fume & Halogen-Free (LSF) elastomer seal
- Metal-to‑metal armour clamping with detachable cone & universal ring
Specifications:
- Operating Range: –60 °C to +130 °C
- Impact Rating: IK10 per IEC 62262 (20 J) for brass & stainless steel models
- Materials: Brass, nickel-plated brass, stainless steel, aluminium

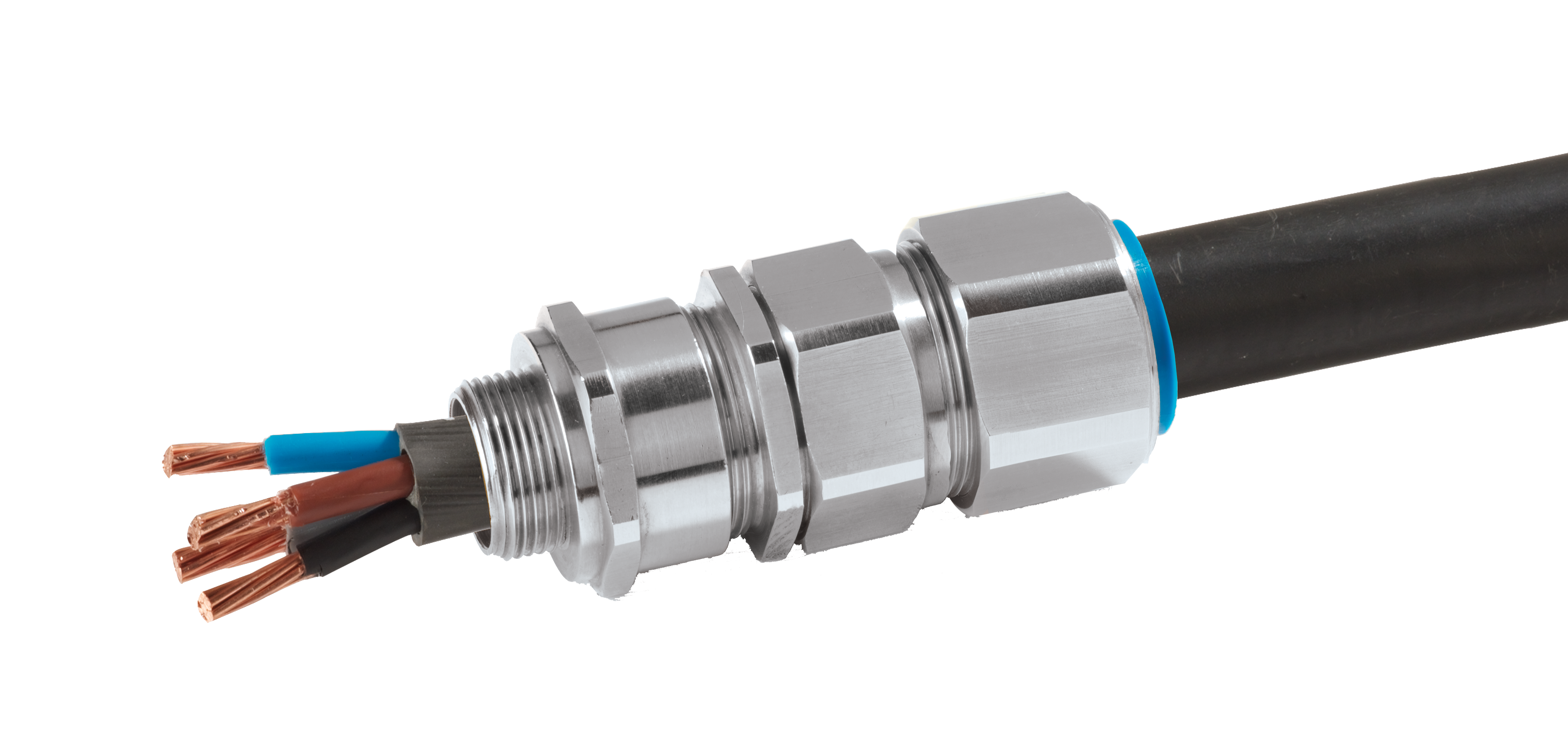

E1W SOLO™ Industrial Cable Gland
Heavy-duty double-seal gland for steel and aluminium wire-armoured cables, offering low smoke, halogen-free protection. Engineered for safety-critical installations with robust EMC performance and approvals for environments like London Underground.
Key Features:
- Supports single steel (SWA) & aluminium wire armoured (AWA) cables
- Inner displacement seal + outer controlled load-retention seal
- Low Smoke & Fume (LSF), halogen-free thermoset elastomer sealing
Specifications:
- Materials: Brass, nickel-plated brass, aluminium
- Temperature Range: –60 °C to +130 °C
- Impact Rating: IK10 per IEC 62262
B348™ Insulated Industrial Cable Gland
This cable gland is designed to provide full electrical isolation of cable armour from the enclosure, eliminating circulating currents and ensuring safe earth separation. Its durable, insulated construction makes it ideal for high-reliability applications requiring fault-current protection, EMC performance, and long-term mechanical integrity.
Key Features:
- Supports SWA & AWA cables
- ZEN insulation design prevents circulating currents
- Low-smoke, halogen-free (LSF) sealing
Specifications:
- Operating Range: –60 °C to +130 °C
- Impact Rating: IK10 per IEC 62262 (20 J) for brass & stainless steel models
- Materials: Brass, nickel-plated brass, stainless steel, aluminium

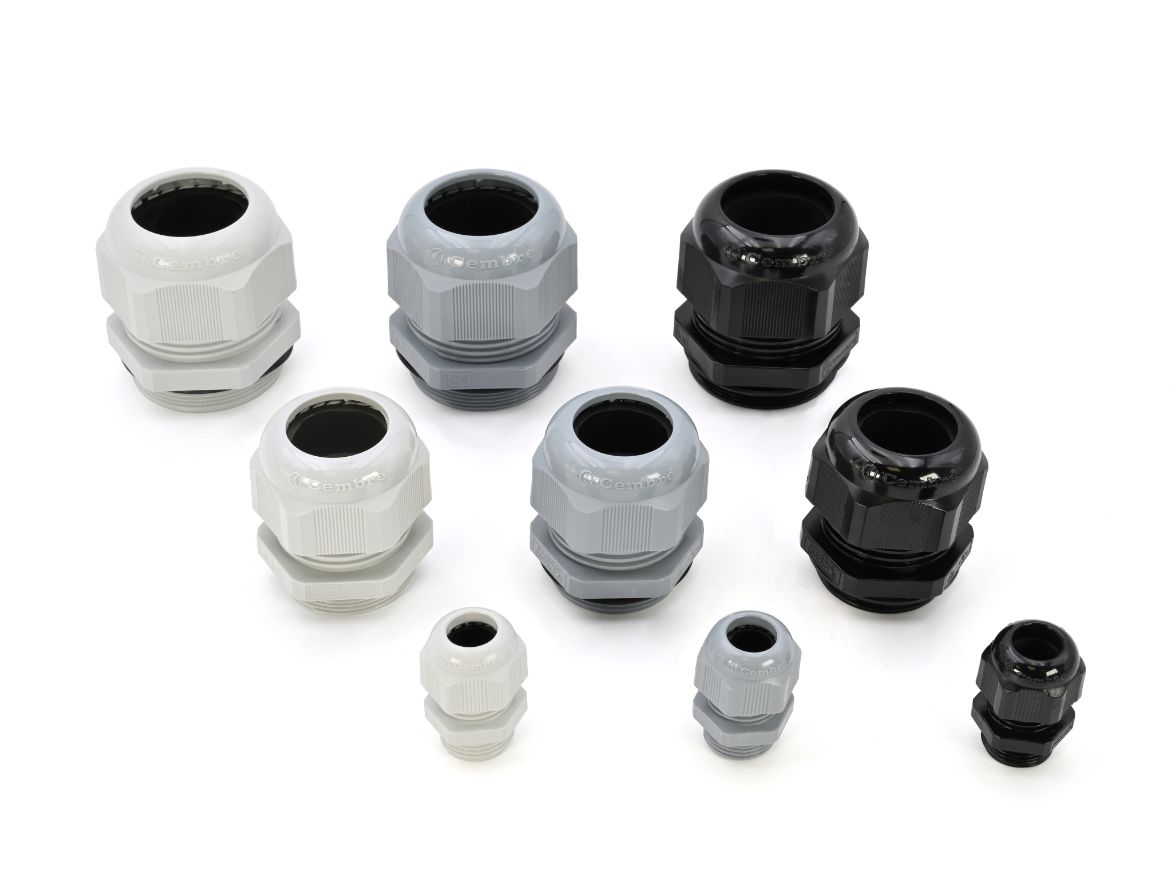

MAXIBLOCK™ 1900 M Cable Gland
Rugged polyamide (PA6.6) cable gland offering IP68 sealing and superior cable retention - designed to protect cables passing through panels from mechanical stress and environmental ingress.
Key Features:
- Excellent cable strain relief and retention
- Available in metric (M) and Pg thread types
- Color options: black, grey, and dark grey
Specifications:
- Material: PA6.6 body, neoprene inner seal
- Temperature Range: –40 °C to +100 °C
- Ingress Protection: IP68
