Lugs & Crimp Connectors
IEWC offers a comprehensive selection of Cembre lugs and crimp connectors engineered for secure, high-performance electrical terminations. From standard ring terminals and narrow-palm designs to multi-hole lugs, splices, and sleeve connectors, each product is made from high-purity electrolytic copper with corrosion-resistant tin plating. These solutions support a wide range of cable sizes and connection types, making them ideal for industrial, utility, and power distribution applications.

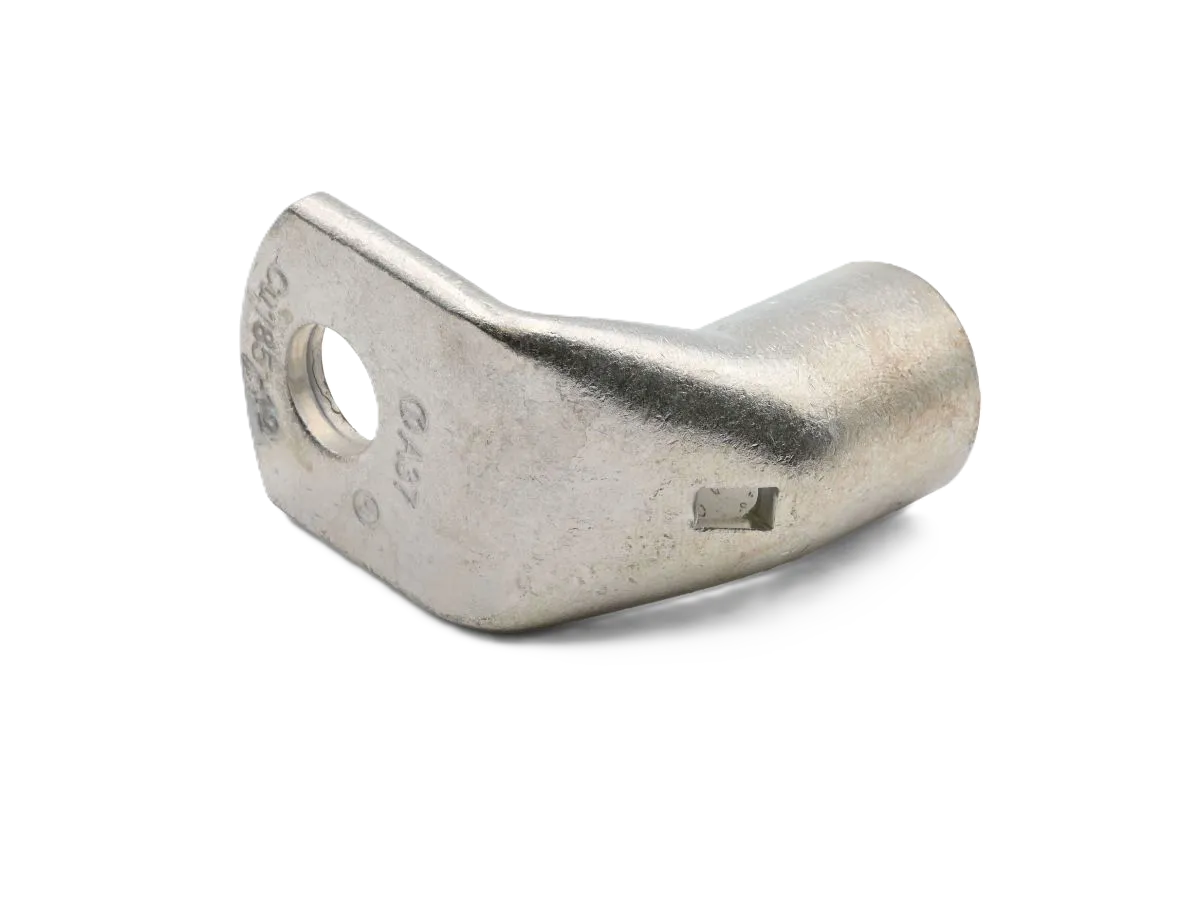

A-M Series Ring Terminals for Copper Conductors
Cembre A-M Series ring terminals provide secure, high-conductivity connections for copper conductors. Made from over 99.95% pure electrolytic copper and tin-plated for corrosion resistance, they offer reliable performance in demanding environments. UL and RoHS certified, they’re ideal for electrical and industrial use.
Key Features:
- For copper conductors (annealed)
- Tin-plated finish resists corrosion
- Wide size range: 1.5–1000 mm²
- Operating temp: -50°C to +150°C
Specifications:
- Stud hole sizes: M3 to M20
- Single-hole palm design
- Barrel includes spy hole and flared entry
- Suitable for industrial and automation wiring

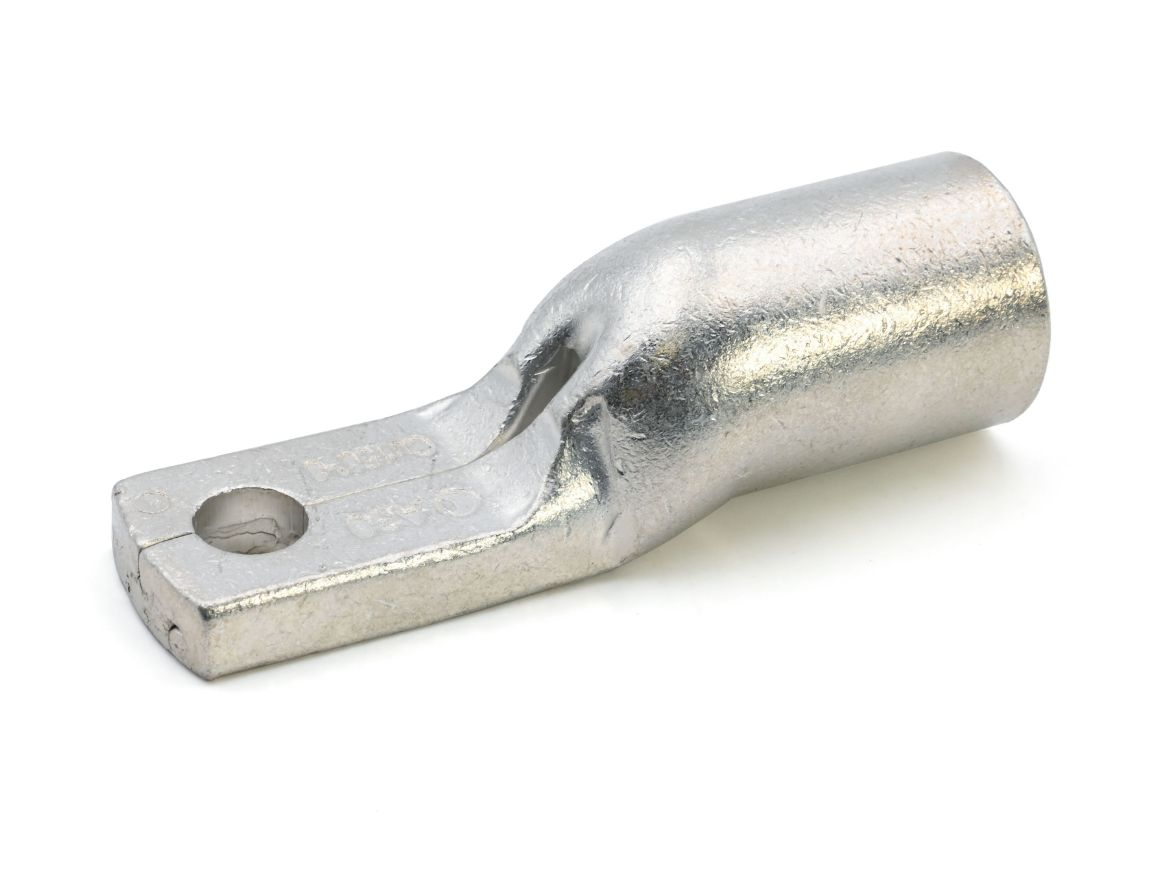

A-M Narrow Palm Ring Terminals for Copper Conductors
Cembre A-M Contained Palm terminals are engineered for compact installations, such as low-voltage circuit breakers. Featuring a narrower palm design and tin-plated high-purity copper, these terminals provide secure, corrosion-resistant connections.
Key Features:
- Designed for copper conductors
- Narrow palm profile for tight spaces
- Tin-plated for corrosion protection
- Operating temperature: -50°C to +150°C
Specifications:
- Cable sizes: 2.5 mm² to 300 mm²
- Stud sizes: M5 to M20
- Some models feature flared barrel and inspection hole

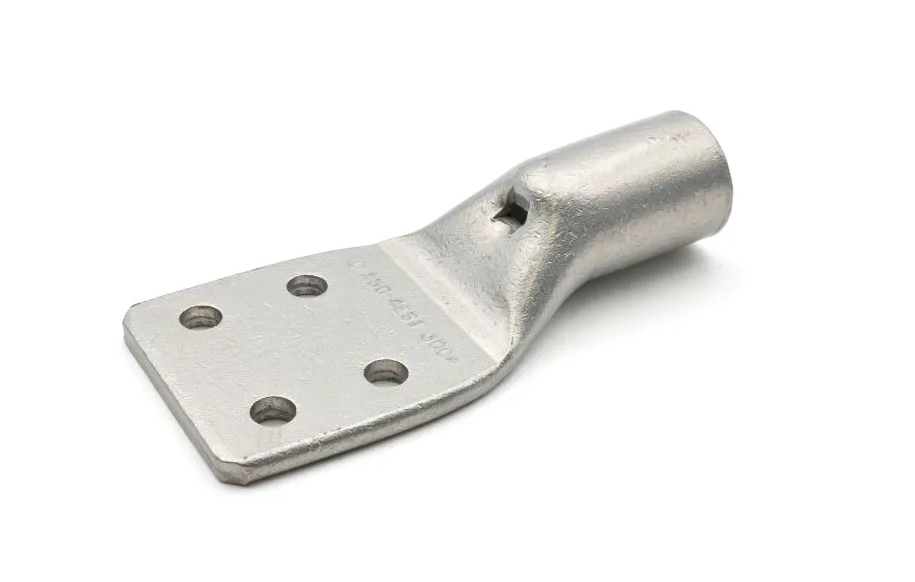

A-4ESI 4-Hole Ring Terminals for Copper Conductors
Cembre A-4ESI terminals feature a robust 4-hole palm design ideal for high-capacity copper connections in demanding applications. Made from high-purity tin-plated copper and designed for easy wire insertion and inspection, these terminals deliver secure, corrosion-resistant performance in heavy-duty electrical systems.
Key Features:
- 4-hole palm design for high-contact stability
- Tin-plated electrolytic copper
- Spy hole and flared entry for ease of installation
- Operating temperature: -50°C to +150°
Specifications:
- Cable sizes: 185 mm² to 800 mm²
- Eyelet hole spacing: 25 mm (center-to-center)
- Hole spacing across barrel: 35 mm
- Suitable for heavy-duty power distribution

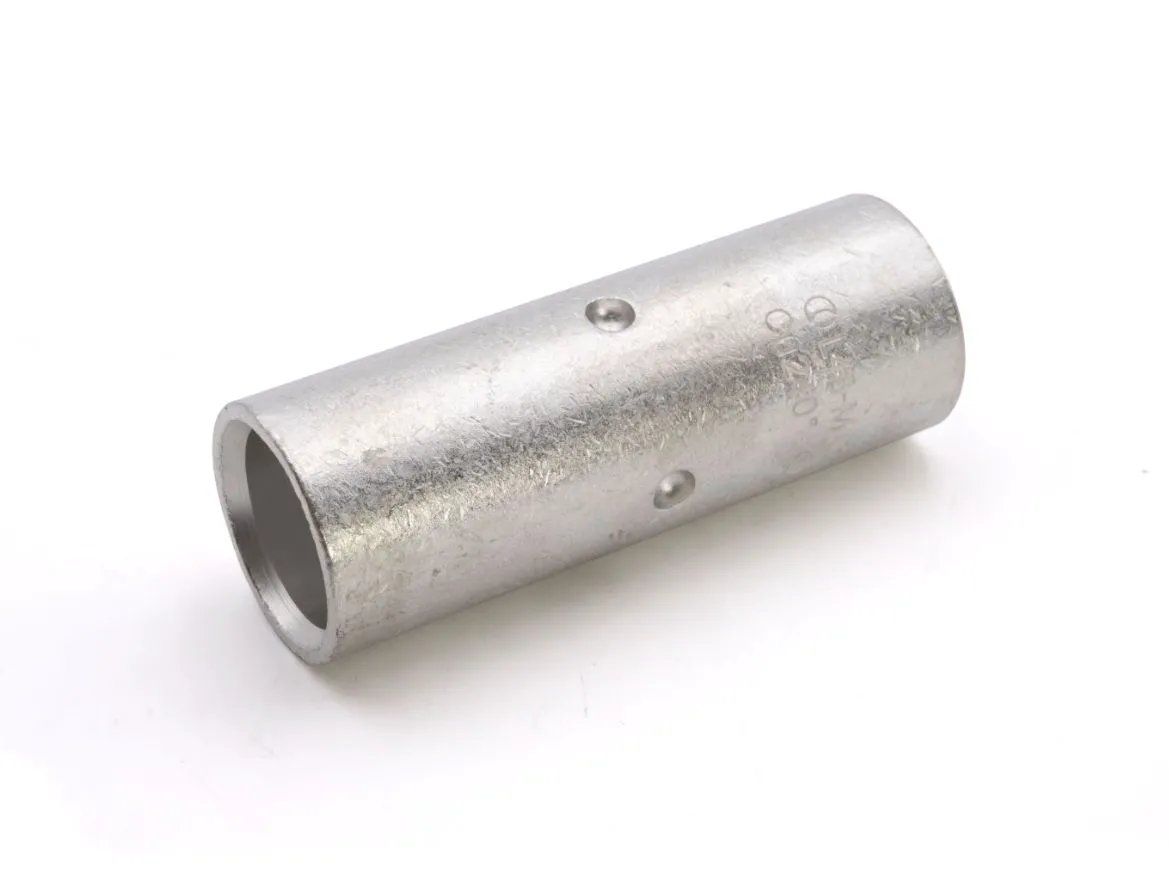

L-M Series Through Connectors for Copper Conductors
The Cembre L-M Series through connectors are designed for secure inline splicing of copper conductors. Made from high-purity, tin-plated copper and featuring a central stop for correct wire positioning, these connectors ensure low-resistance, corrosion-resistant connections across a wide conductor range.
Key Features:
- Butt and parallel splice designs available
- Central stop for conductor alignment
- Tin-plated high-purity copper
- Operating temperature: -50°C to +150°C
Specifications:
- For copper conductors up to 1000 mm²
- Connector lengths range from 15 mm to 120 mm
- Flared ends for easy conductor insertion

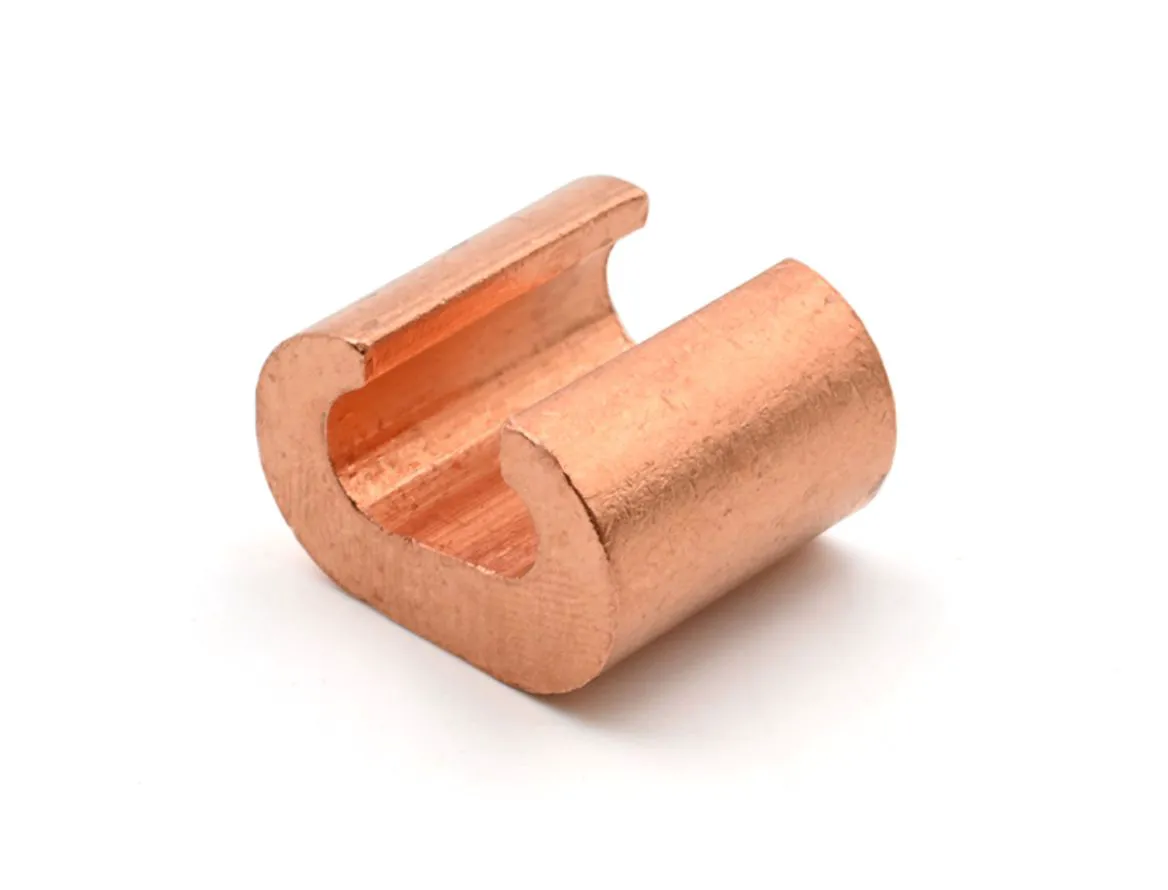

C-C Series Sleeve Connectors for Copper Conductors
Cembre C-C Series sleeve connectors are designed for reliable tap or joint connections between copper conductors. Constructed from tin-plated, high-purity copper, these connectors feature an oval crimping profile for secure compression.
Key Features:
- For copper tap or joint connections
- Tin-plated electrolytic copper
- Oval crimp profile for strong mechanical contact
- Operating temperature: -50°C to +150°
Specifications:
- Through conductor size: 2.5 mm² to 240 mm²
- Branch conductor size: 1.5 mm² to 185 mm²
- Oval sleeve design with annealed copper body
- Compact length range: ~9 mm to 68 mm
