18 AWG, Multi-conductor Electronic Cable, 3 Conductor, Unshielded, RedClassics High-Temp
IEWC Part #: 1803CSS-1BED1
Manf. Part #:83653 002100
Manufacturer:Belden
Expected Country of Origin:CA,MX,US

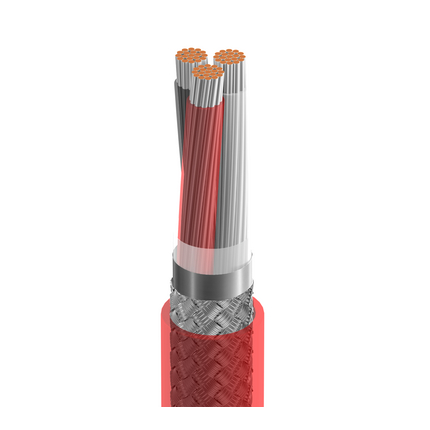

18 AWG stranded (19x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
# of Conductors 3 # of Pairs 0 Armor Type NONE Color RED Conductor Configuration CONDUCTORS Conductor Metal TINNED COPPER Conductor Shielding Type UNSHIELDED Conductor Type STRANDED Gauge Size 18 Insulation Material FEP Jacket Material FEP Label Type UL CUL Manufacturer Belden Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Specification(s) NEC CMP Stranding 19 Supplier Series Classics High-Temp Temperature 200C UL Type CMP Voltage 300V Customers can return standard, non-serviced IEWC products (the "Products") as follows:
