16 2C 19TC 200C 300V SS FEP CMP RED
IEWC Part #: 1602CSS-1BEE
Manf. Part #:83702 002100
Manufacturer:BELDEN
Expected Country of Origin:CA,MX,US

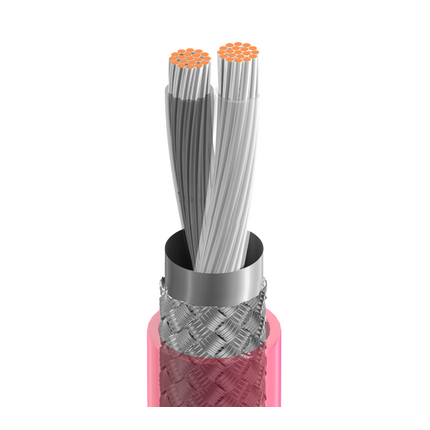

16 AWG stranded (19x29) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage) FEP jacket.
Add to cart to request quote
FT
Gauge Size 16 Color RED Stranding 19 Conductor Metal TINNED COPPER Insulation Material FEP Voltage 300V # of Conductors 2 Temperature 200C Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Jacket Material FEP Label Type UL CUL Manufacturer BELDEN Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Specification(s) NEC CMP Supplier Series 83702 UL Type CMP Customers can return standard, non-serviced IEWC products (the "Products") as follows:
