18 1PR 19TC 75C 300V OFS LSPVC CMP NAT
IEWC Part #: 1802POFS-NBEB1
Manf. Part #:82760 8771000
Manufacturer:BELDEN
Expected Country of Origin:US

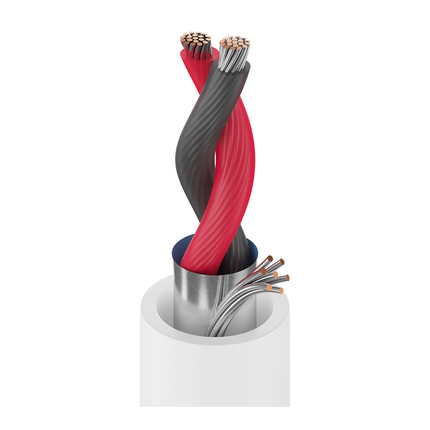

18 AWG stranded (19x30) TC conductors, plenum, FEP insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, Flamarrest® jacket.
Add to cart to request quote
FT
Gauge Size 18 Color NATURAL Stranding 19 Conductor Metal TINNED COPPER Insulation Material FEP Voltage 300V # of Conductors 2 Temperature 75C Conductor Type STRANDED # of Pairs 1 Armor Type NONE Conductor Configuration PAIRS Conductor Shielding Type UNSHIELDED Jacket Material LS-PVC Label Type UL CUL Manufacturer BELDEN Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE W/ SHORTING FOLD Specification(s) NEC CMP Supplier Series Classics High-Temp UL Type CMP Customers can return standard, non-serviced IEWC products (the "Products") as follows:
