18 4C 19SPC 200C 600V OBS TFE WHITE
IEWC Part #: 1804COBS-9BEB
Manf. Part #:83351E 009100
Manufacturer:BELDEN
Expected Country of Origin:CA,MX,US

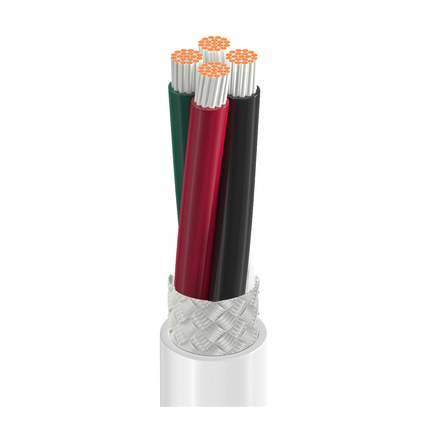

18 AWG stranded (19x30) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver-plated copper braid shield (85% coverage), TFE teflon tape-wrapped jacket.
Add to cart to request quote
FT
Gauge Size 18 Color WHITE Stranding 19 Conductor Metal SILVER PLATED COPPER Insulation Material TFE Voltage 600V # of Conductors 4 Temperature 200C Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Jacket Material TFE Manufacturer BELDEN Overall Shielding Type SEMI-CONDUCTING THERMOSET AND COPPER TAPE Supplier Series Classics High-Temp Customers can return standard, non-serviced IEWC products (the "Products") as follows:
