18 12C 19TC 200C 300V SS FEP CMP RED
IEWC Part #: 1812CSS-1BED
Manufacturer:Approved Manufacturer
Expected Country of Origin:US

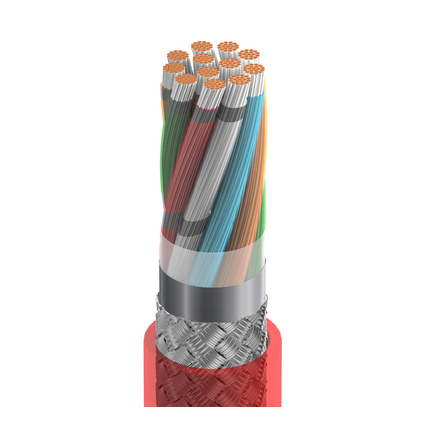

18 AWG stranded (19x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
Gauge Size 18 Color RED Stranding 19 Conductor Metal TINNED COPPER Insulation Material FEP Voltage 300V # of Conductors 12 Temperature 200C Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Jacket Material FEP Label Type UL CUL Manufacturer Approved Manufacturer Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Specification(s) NEC CMP Supplier Series 83662 UL Type CMP - Belden: 83662 0021000
