20 2C 7BC 75C 300V OFS PVC CMR GRAY
IEWC Part #: 2002COFS-8BEE1
Manf. Part #:5400FE 0081000
Manufacturer:BELDEN
Expected Country of Origin:CA,MX,US

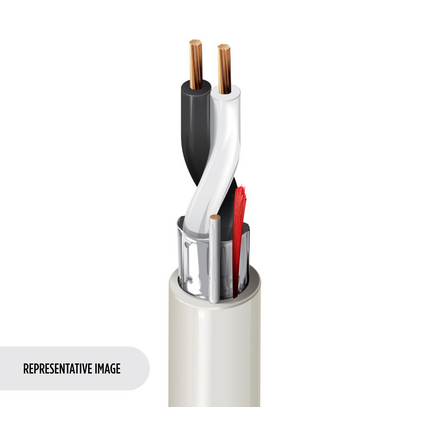

Security & Commercial Audio Cable, Riser-CMR, 2-20 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Add to cart to request quote
FT
Gauge Size 20 Color GRAY Stranding 7 Conductor Metal BARE COPPER Insulation Material PP Voltage 300V # of Conductors 2 Temperature 75C Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Jacket Material PVC Label Type UL Manufacturer BELDEN Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE W/ SHORTING FOLD Specification(s) NEC CMR Supplier Series 5400FE UL Type CMR Customers can return standard, non-serviced IEWC products (the "Products") as follows:
- If you did not receive the Product you ordered, the Product is not functioning in accordance with the Product specifications, or there is visible shipping damage to the Product due to an IEWC freight carrier, IEWC will replace the Product at no cost to you. All such claims must be submitted to and approved by IEWC's customer support team within thirty (30) days of the Invoice date.
- If you longer need the Product, you can return it subject to IEWC restocking fees in place at the time of the return. For these returns, the customer is responsible for all shipping costs incurred. All such returns must be submitted to and approved by IEWC's customer support team within ninety (90) days of the invoice date.
All Product returns are subject to IEWC's complete return policy.
