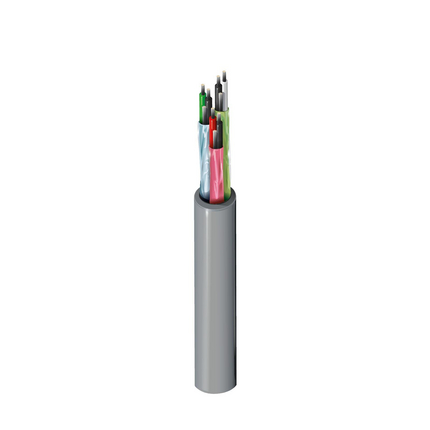

18 AWG, Multi-pair Electronic Cable, 6 Conductor, Aluminum foil/polyester tape, Gray9773
IEWC Part #: 1806PSP-8BEE-CN
Manf. Part #:9773 0601000
Manufacturer:Belden
Expected Country of Origin:MX,US
Audio, Control & Instrument Cable, 18 AWG stranded (19x30) tinned copper conductors, polypropylene insulation, 3 twisted pairs, individually shielded with Beldfoil® (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.
Add to cart to request quote
FT
Minimum order: 1000 FT
Gauge Size 18 Jacket Material PVC Insulation Material PP Specification(s) NEC CM, UL 2919 # of Pairs 3 Temperature 80C Color GRAY # of Conductors 6 Armor Type NONE Conductor Configuration PAIRS Conductor Metal TINNED COPPER Conductor Shielding Type ALUMINUM FOIL/POLYESTER TAPE Conductor Type STRANDED Label Type UL CUL Manufacturer Belden Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE Stranding 19 Supplier Series 9773 UL Type AWM Voltage 30V Customers can return standard, non-serviced IEWC products (the "Products") as follows:
- If you did not receive the Product you ordered, the Product is not functioning in accordance with the Product specifications, or there is visible shipping damage to the Product due to an IEWC freight carrier, IEWC will replace the Product at no cost to you. All such claims must be submitted to and approved by IEWC's customer support team within thirty (30) days of the Invoice date.
- If you longer need the Product, you can return it subject to IEWC restocking fees in place at the time of the return. For these returns, the customer is responsible for all shipping costs incurred. All such returns must be submitted to and approved by IEWC's customer support team within ninety (90) days of the invoice date.
All Product returns are subject to IEWC's complete return policy.
