10Base5, 20 & 22 AWG, 4-Pair, TINNED COPPER BRAID, Blue, 5000'

000000000032040908 MFG #: 9891 0065000
Requires Quote
Quote Required
  • # of Conductors: 8
  • # of Pairs: 4
  • Armor Type: NONE
  • Color: BLUE
  • Conductor Configuration: PAIRS
  • Conductor Metal: TINNED COPPER
  • Conductor Shielding Type: ALUMINUM FOIL/POLYESTER TAPE
  • Conductor Type: STRANDED
  • Gauge Size: 20
  • Insulation Material: FOAM HDPE/[VC
  • Jacket Material: PVC
  • Manufacturer: Belden
  • Overall Shielding Type: TINNED COPPER BRAID
  • Specification(s): NEC CM
  • Stranding: NOT SPECIFIED
  • Supplier Series: 9891
  • Temperature: 80C
  • Voltage: 300V

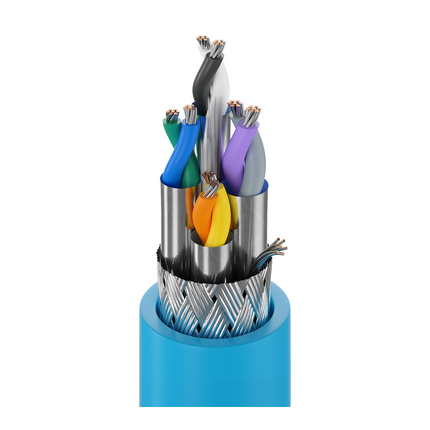

IEEE 802.3 Ethernet Transceiver 10BASE5, 20 and 22 AWG stranded tinned copper conductors, foam high-density polyethylene (22 AWG) and PVC (20 AWG) insulation, twisted pairs, Individually foil shielded pairs with overall tinned copper braid shield (95% coverage) drain wire, PVC jacket.
