Type E Cable, 20 AWG, 2 Conductor, TFE Insulated, TFE Jacket, White
IEWC Part #: 32133071
Manf. Part #:83320E 0091000
Manufacturer:Belden
Expected Country of Origin:US

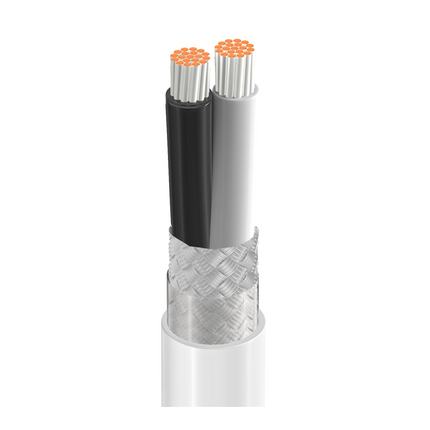

20 AWG stranded (19x32) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver-plated copper braid shield (85% coverage), TFE teflon tape-wrapped jacket.
Add to cart to request quote
FT
Minimum order: 1000 FT
# of Conductors 2 # of Pairs 0 Armor Type NONE Color WHITE Conductor Configuration CONDUCTORS Conductor Metal SILVER PLATED COPPER Conductor Shielding Type UNSHIELDED Conductor Type STRANDED Gauge Size 20 Insulation Material TFE Jacket Material TFE Manufacturer Belden Overall Shielding Type SEMI-CONDUCTING THERMOSET AND COPPER TAPE Stranding 19 Supplier Series 83320E Temperature 200C Voltage 600V Customers can return standard, non-serviced IEWC products (the "Products") as follows:
