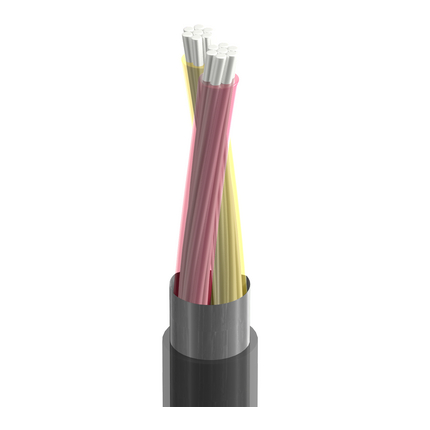

Type KX Extension Grade Thermocouple Wire, 20 AWG, 2C, Stranded, FEP Insulation, Yellow
IEWC Part #: THC20S02KX-TAT-BE
Manf. Part #:83952 0041000
Manufacturer:Belden
Expected Country of Origin:US
20 AWG stranded (7x28) conductors, FEP insulation, overall Beldfoil® shield (100% coverage), FEP jacket.
Add to cart to request quote
FT
Minimum order: 5000 FT
# of Conductors 2 # of Pairs 1 Armor Type NONE Color YELLOW Conductor Configuration PAIRS Conductor Metal BARE COPPER Conductor Shielding Type UNSHIELDED Conductor Type STRANDED Gauge Size 20 Insulation Material FEP Jacket Material FEP Label Type UL Manufacturer Belden Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE/ALUMINUM FOIL Stranding 7 Supplier Series 83952 Temperature 200C UL Type Power-Limited Tray Cables Customers can return standard, non-serviced IEWC products (the "Products") as follows:
