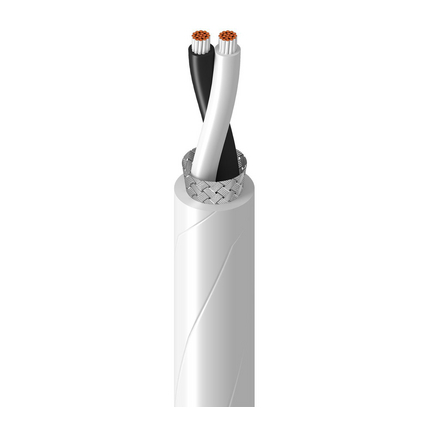

Type E Cable, 22 AWG, 2 Conductor, TFE Insulated, TFE Jacket, White
IEWC Part #: 32021008
Manf. Part #:83319E 009100
Manufacturer:Belden
Expected Country of Origin:MX
22 AWG stranded (19x34) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver-plated copper braid shield (85% coverage), TFE teflon tape-wrapped jacket.
Add to cart to request quote
FT
Minimum order: 100 FT
Gauge Size 22 # of Conductors 2 Color WHITE Voltage 600V Overall Shielding Type SEMI-CONDUCTING THERMOSET AND COPPER TAPE Temperature 200C Jacket Material TFE Stranding 19 Conductor Metal SILVER PLATED COPPER Insulation Material TFE Conductor Type STRANDED # of Pairs NOT SPECIFIED Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Manufacturer Belden Supplier Series 83319E Customers can return standard, non-serviced IEWC products (the "Products") as follows:
