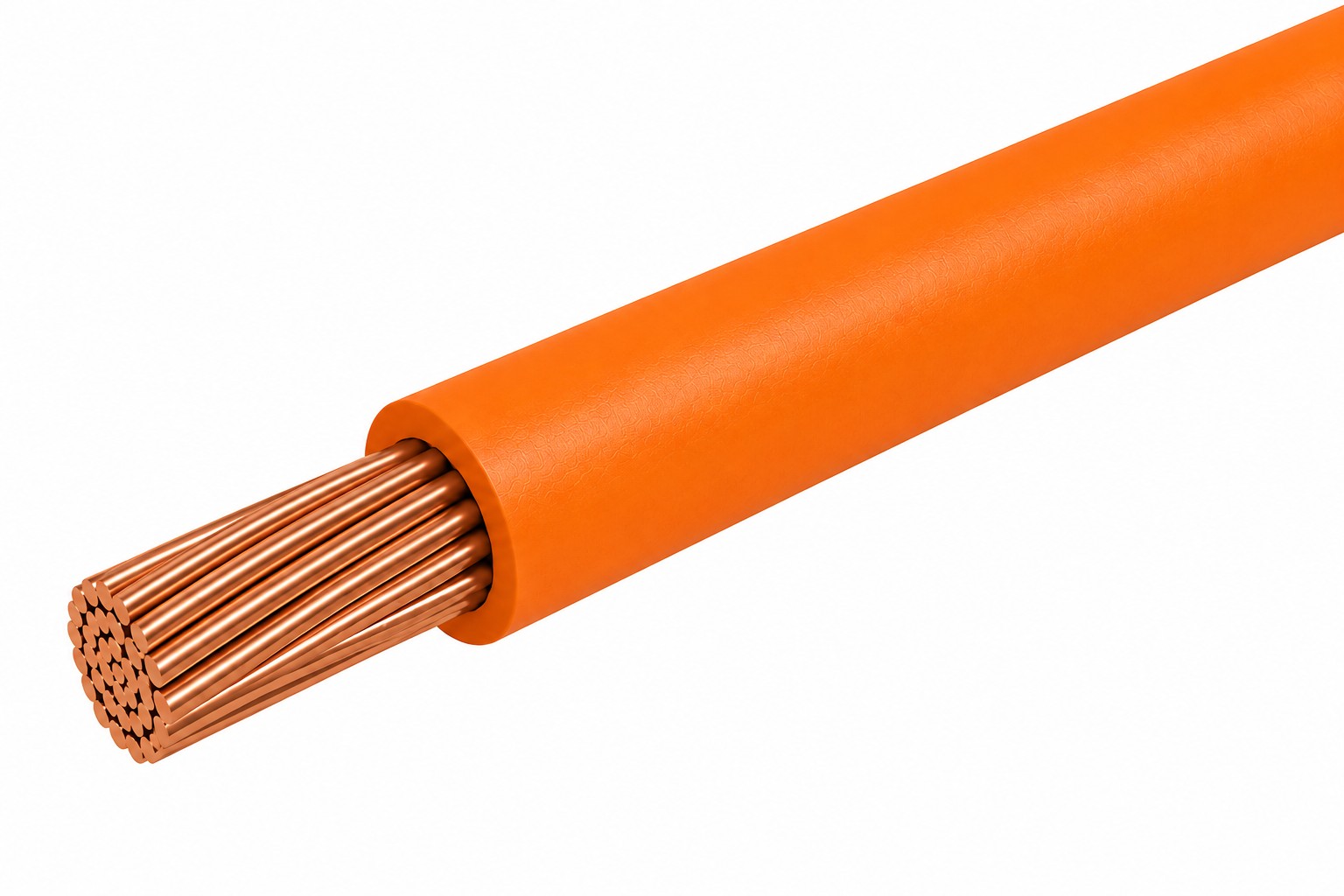

Electric & Hybrid Vehicle Battery Cable, 70MM2, 1C, TIN PLATED COPPER BRAID, 1/1.5kV, RADOX 155 Insulated, ISO 19642-9 CLASS D, ISO 6722-1 CLASS D, Orange
IEWC Part #: 32099165
Manf. Part #:84100298
Manufacturer:HUBER+SUHNER
Expected Country of Origin:CH
Built for next-generation transportation, 32099165 Wire & Cable offers robust performance in harsh automotive and industrial environments. It features 1-conductor 70MM2 AWG 360-strand bare copper stranded conductors with RADOX 155 insulation and a RADOX ELASTOMER S jacket in a orange color and tin plated copper braid overall shielding. This cable is rated for 1/1.5kV, and 150C, built to ISO 19642-9 CLASS D;ISO 6722-1 CLASS D requirements. Perfect for high-voltage power distribution in electric vehicles, buses, and off-road equipment requiring durable, vibration-resistant cabling.
M
Minimum order: 10 M
Gauge Size 70MM2 Specification(s) ISO 19642-9 CLASS D, ISO 6722-1 CLASS D # of Conductors 1 Color ORANGE Voltage 1/1.5kV Overall Shielding Type TIN PLATED COPPER BRAID Temperature 150C Jacket Material RADOX Elastomer S Stranding 360 Insulation Material RADOX 155 Conductor Metal BARE COPPER Manufacturer HUBER+SUHNER Armor Type NONE Conductor Type STRANDED Customers can return standard, non-serviced IEWC products (the "Products") as follows:
