20 10 TOPCOAT 105C 300V 1007/1569 WHITE
IEWC Part #: 1007/20Q10-9
Manf. Part #:1007/20Q10-9
Manufacturer:Atlas Wire
Expected Country of Origin:US

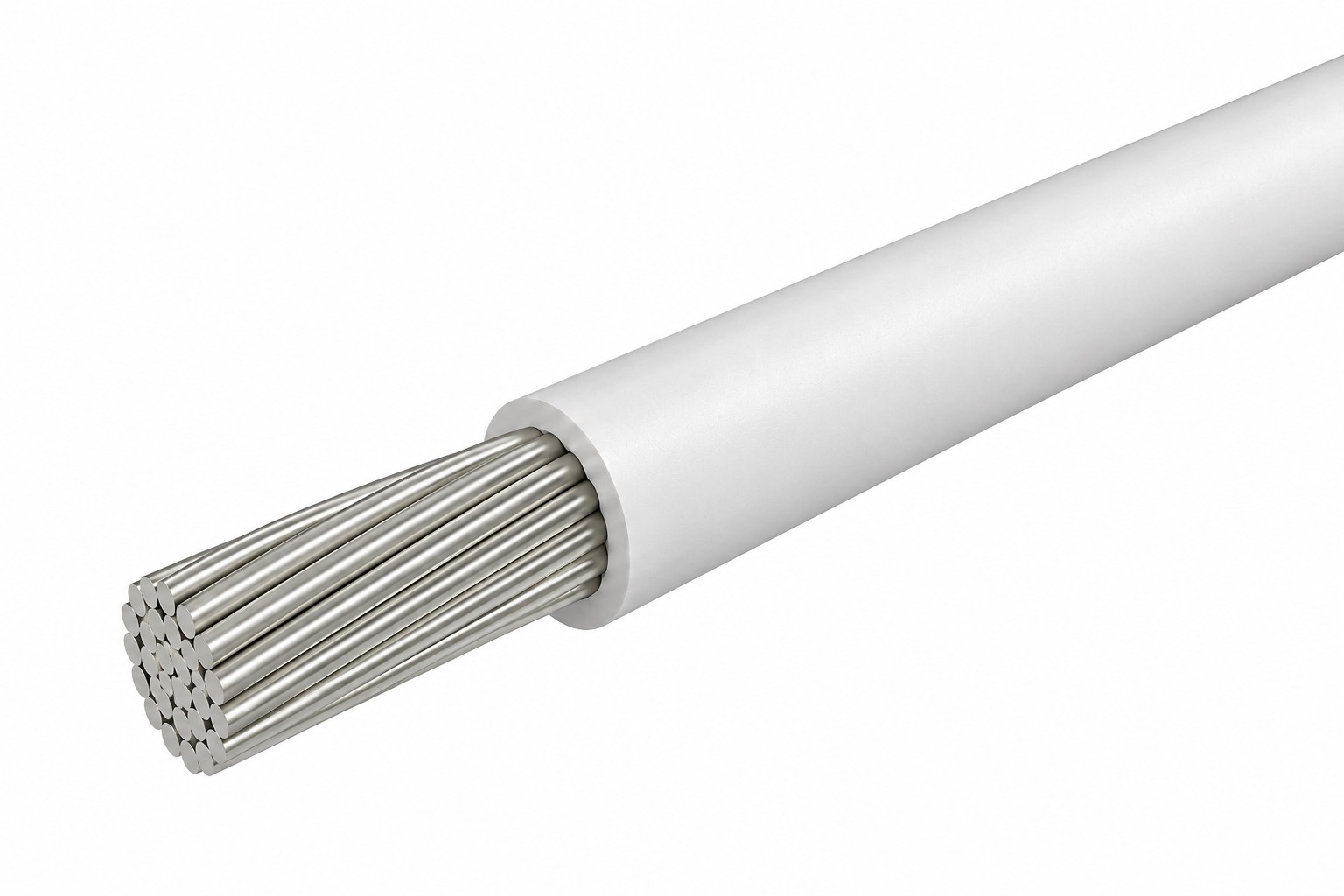

1007/20Q10-9 UL 1007 hook-up wire is designed for dependable internal wiring applications. It features 20 AWG, 10 strand Topcoat conductors with PVC insulation for heat resistance. The wire comes in a White finish, rated for 105C and 300V. It complies with UL 1569 AWM standards and is unshielded for versatile use Well-suited for compact installations and performance longevity.
FT
Minimum order: 10000 FT
Gauge Size 20 Specification(s) CSA AWM, CSA TR-64, UL 1007, UL 1569 UL Type AWM # of Conductors 1 Color WHITE Voltage 300V Overall Shielding Type UNSHIELDED Temperature 105C Jacket Material NONE Stranding 10 Insulation Material PVC Conductor Metal TOPCOAT Conductor Type STRANDED Manufacturer Atlas Wire Armor Type NONE Conductor Shielding Type UNSHIELDED CSA Type TR-64 Label Type RU CSA - Striping
- Dyeing
- Print - Ink Jet
