14 3C 7TC 200C 300V DS FEP CMP RED
IEWC Part #: 1403CSS-1BED-CN
Manf. Part #:83753 0021000
Manufacturer:BELDEN
Expected Country of Origin:US

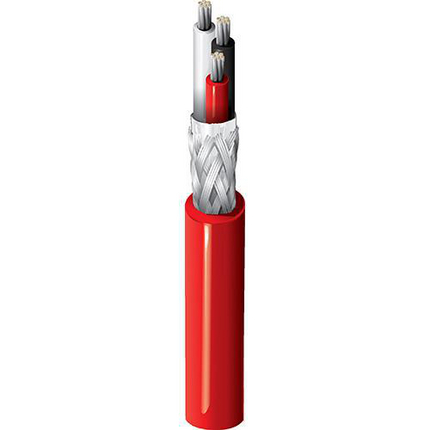

14 AWG stranded (7x22) TC conductors, conductors cabled, plenum, FEP insulation, Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
Gauge Size 14 Specification(s) NEC CMP/FPLP UL Type CMP # of Conductors 3 Color RED Voltage 300V Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Temperature 200C Jacket Material FEP Stranding 7 Insulation Material FEP Conductor Metal TINNED COPPER Conductor Type STRANDED # of Pairs NOT SPECIFIED Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Label Type UL CUL Manufacturer BELDEN Supplier Series 83753 Customers can return standard, non-serviced IEWC products (the "Products") as follows:
