Type E Cable, 18 AWG, 3 Conductor, TFE Insulated, TFE Jacket, White

1803COBS-9BEE1 MFG #: 83336E 0091000
Requires Quote
Quote Required
  • # of Conductors: 3
  • # of Pairs: 0
  • Armor Type: NOT SPECIFIED
  • Color: WHITE
  • Conductor Configuration: CONDUCTORS
  • Conductor Metal: SILVER PLATED COPPER
  • Conductor Shielding Type: NOT SPECIFIED
  • Conductor Type: STRANDED
  • Gauge Size: 18
  • Insulation Material: TFE
  • Jacket Material: TFE
  • Manufacturer: Belden
  • Overall Shielding Type: SILVER PLATED COPPER BRAID
  • Specification(s): CE, M39, MIL M17878/4, RoHS2, WEEE
  • Stranding: 19
  • Supplier Series: 83336E
  • Temperature: 200C
  • Voltage: 600V

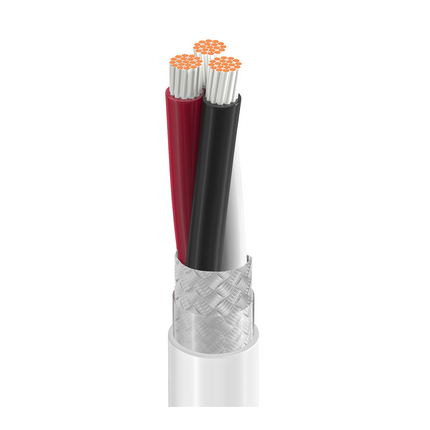

18 AWG stranded (19x30) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver-plated copper braid shield (85% coverage), TFE teflon tape-wrapped jacket.
