18 6C 19TC 200C 300V SS FEP CMP RED
IEWC Part #: 1806CSS-1BEB
Manf. Part #:83656 002100
Manufacturer:BELDEN
Expected Country of Origin:CA,MX,US

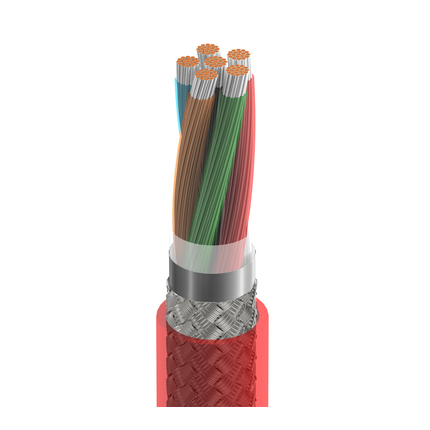

18 AWG stranded (19x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage)FEP jacket.
Add to cart to request quote
FT
Gauge Size 18 Specification(s) NEC CMP UL Type CMP # of Conductors 6 Color RED Voltage 300V Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Temperature 200C Jacket Material FEP Stranding 19 Insulation Material FEP Conductor Metal TINNED COPPER Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Label Type UL CUL Manufacturer BELDEN Supplier Series Classics High-Temp Customers can return standard, non-serviced IEWC products (the "Products") as follows:
