20 4C 7TC 200C 300V SS FEP CMP RED
IEWC Part #: 2004CSS-1BEE
Manufacturer:Approved Manufacturer
Expected Country of Origin:US

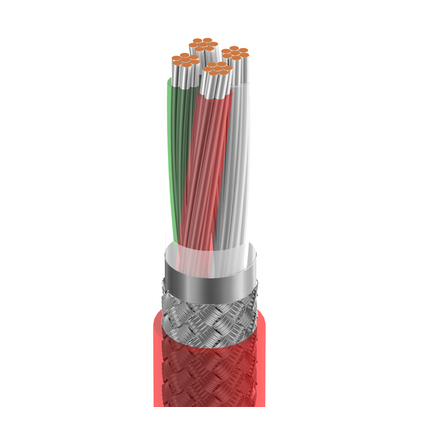

20 AWG stranded (7x28) TC conductors, conductors cabled, planum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
Gauge Size 20 Specification(s) NEC CMP UL Type CMP # of Conductors 4 Color RED Voltage 300V Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Temperature 200C Jacket Material FEP Stranding 7 Insulation Material FEP Conductor Metal TINNED COPPER Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Label Type UL CUL Manufacturer Approved Manufacturer Supplier Series 83604 Customers can return standard, non-serviced IEWC products (the "Products") as follows:
- If you did not receive the Product you ordered, the Product is not functioning in accordance with the Product specifications, or there is visible shipping damage to the Product due to an IEWC freight carrier, IEWC will replace the Product at no cost to you. All such claims must be submitted to and approved by IEWC's customer support team within thirty (30) days of the Invoice date.
- If you longer need the Product, you can return it subject to IEWC restocking fees in place at the time of the return. For these returns, the customer is responsible for all shipping costs incurred. All such returns must be submitted to and approved by IEWC's customer support team within ninety (90) days of the invoice date.
All Product returns are subject to IEWC's complete return policy.
