20 6C 26TC 020 RUBBER OA TCB SHLD BLACK
IEWC Part #: 2006COBS/RR-0C-BE
Manf. Part #:8426 010250
Manufacturer:BELDEN
Expected Country of Origin:CA,MX,US

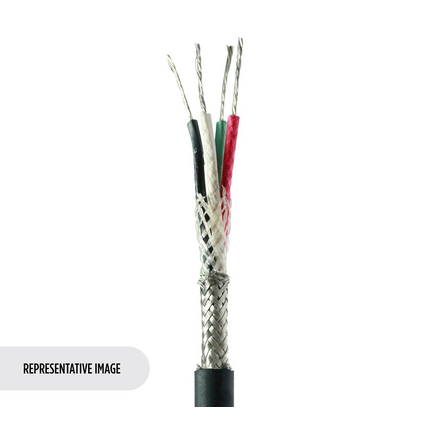

Mic, 20 AWG stranded (26x34) high-conductivity TC conductors, cabled, rubber insulation, cotton wrap, rayon braid, TC braid shield (85% coverage), EPDM rubber jacket.
Add to cart to request quote
FT
Gauge Size 20 Specification(s) CE, M39, MIL M17878/4, RoHS2, WEEE # of Conductors 6 Color BLACK Voltage 600V Overall Shielding Type TINNED COPPER BRAID Temperature 90C Jacket Material EPDM Stranding 26 Insulation Material EPDM Conductor Metal TINNED COPPER Conductor Type STRANDED # of Pairs 0 Armor Type NOT SPECIFIED Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Manufacturer BELDEN Customers can return standard, non-serviced IEWC products (the "Products") as follows:
