20 6C 7TC 200C 300V SS FEP CMP RED
IEWC Part #: 2006CSS-1BED
Manf. Part #:83606 002500
Manufacturer:BELDEN
Expected Country of Origin:US

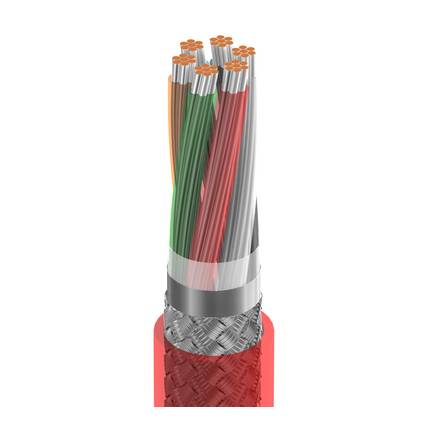

20 AWG stranded (7x28) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
Gauge Size 20 Specification(s) NEC CMP UL Type CMP # of Conductors 6 Color RED Voltage 300V Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Temperature 200C Jacket Material FEP Stranding 7 Insulation Material FEP Conductor Metal TINNED COPPER Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Label Type UL CUL Manufacturer BELDEN Supplier Series Classics High-Temp Customers can return standard, non-serviced IEWC products (the "Products") as follows:
