20 AWG, Multi-conductor Electronic Cable, 12 Conductor, Unshielded, Red83612
IEWC Part #: 2012CSS-1BEB
Manufacturer:Approved Manufacturer
Expected Country of Origin:US

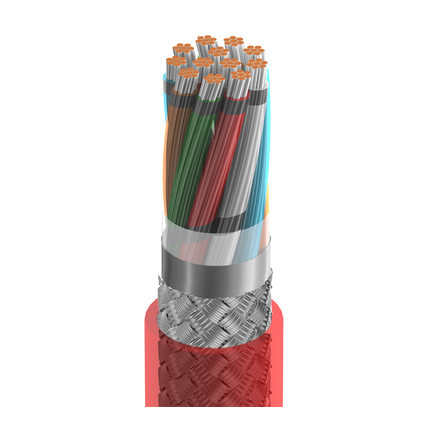

20 AWG stranded (7x28) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
Minimum order: 1000 FT
Gauge Size 20 # of Conductors 12 Color RED Voltage 300V Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Temperature 200C Jacket Material FEP Specification(s) NEC CMP Stranding 7 Conductor Metal TINNED COPPER Insulation Material FEP Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Label Type UL CUL Manufacturer Approved Manufacturer Supplier Series 83612 UL Type CMP - Belden: 83612 0021000
