22 AWG, Multi-conductor Electronic Cable, 2 Conductor, Red83552
IEWC Part #: 2202CSS-1BED1
Manf. Part #:83552 002500
Manufacturer:Belden
Expected Country of Origin:US

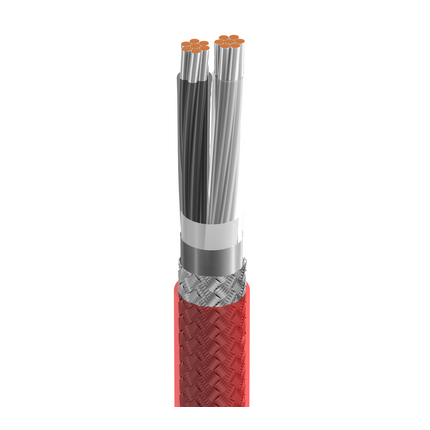

22 AWG stranded (7x30) TC conductors, conductors cabled, plenum, FEP insulated, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
Gauge Size 22 Specification(s) CE, M39, NEC CMP, RoHS, RoHS2, WEEE # of Conductors 2 Color RED Voltage 300V Temperature 200C Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND TINNED COPPER BRAID Jacket Material FEP Stranding 7 Conductor Metal TINNED COPPER Insulation Material FEP Conductor Type STRANDED # of Pairs 0 Armor Type NOT SPECIFIED Conductor Configuration CONDUCTORS Conductor Shielding Type NOT SPECIFIED Label Type UL CUL Manufacturer Belden Supplier Series 83552 UL Type CMP Customers can return standard, non-serviced IEWC products (the "Products") as follows:
