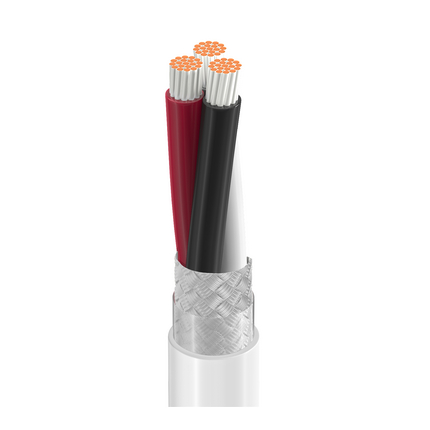

Type E Cable, 22 AWG, 3 Conductor, TFE Insulated, TFE Jacket, White
IEWC Part #: 2203COBS-9BED
Manf. Part #:83334E 0091000
Manufacturer:Belden
Expected Country of Origin:MX
22 AWG stranded (19x34) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver-plated copper braid shield (85% coverage), TFE teflon tape-wrapped jacket.
Add to cart to request quote
FT
Minimum order: 1000 FT
Gauge Size 22 # of Conductors 3 Color WHITE Voltage 600V Overall Shielding Type SEMI-CONDUCTING THERMOSET AND COPPER TAPE Temperature 200C Jacket Material TFE Stranding 19 Conductor Metal SILVER PLATED COPPER Insulation Material TFE Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Manufacturer Belden Supplier Series 83334E - Approved Manufacturer: 2203COBS-9BED
