22 3C 7TC 150C 2KV OFS SILICONE RBR RED
IEWC Part #: 2203COFS-1BEE
Manf. Part #:83395 002500
Manufacturer:BELDEN
Expected Country of Origin:CA,MX,US

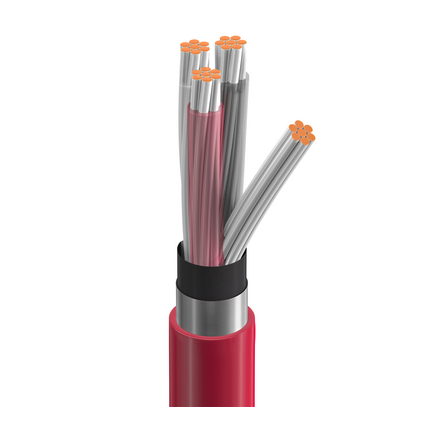

22 AWG stranded (7x30) TC conductors, conductors cabled, 22 AWG (7x30) stranded TC drain wire, FEP insulation, special Beldfoil® shield (100% coverage), silicone rubber jacket, noise reducing tape.
FT
Minimum order: 500 FT
Gauge Size 22 Specification(s) UL 4516 # of Conductors 3 Color RED Voltage 2kV Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE AND NOISE REDUCING CONDUCTIVE NYLON TAPE Temperature 150C Jacket Material SILICONE Stranding 7 Insulation Material FEP Conductor Metal TINNED COPPER Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Manufacturer BELDEN Supplier Series Classics High-Temp Customers can return standard, non-serviced IEWC products (the "Products") as follows:
