22 AWG, Multi-pair Electronic Cable, 4 Conductor, Aluminum foil/polyester tape, Natural82723
IEWC Part #: 2204PSP-NBEE
Manf. Part #:82723 8771000
Manufacturer:Belden
Expected Country of Origin:US

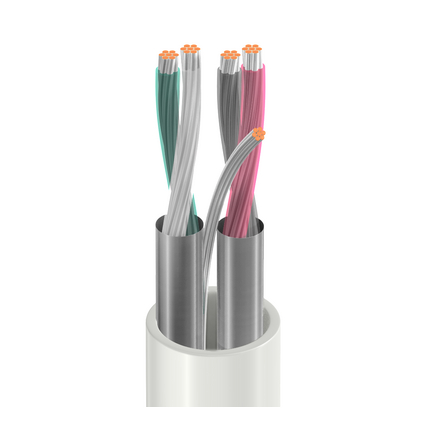

Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, FEP insulation, twisted pairs, individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest® jacket, plenum rated.
Add to cart to request quote
FT
Minimum order: 1000 FT
Gauge Size 22 Specification(s) NEC CMP # of Conductors 4 Color NATURAL Voltage 300V Temperature 75C Overall Shielding Type UNSHIELDED Jacket Material LS-PVC Stranding 7 Conductor Metal TINNED COPPER Insulation Material FEP # of Pairs 2 Armor Type NONE Conductor Configuration PAIRS Conductor Shielding Type ALUMINUM FOIL/POLYESTER TAPE Conductor Type STRANDED Label Type UL CUL Manufacturer Belden Supplier Series 82723 UL Type CMP Customers can return standard, non-serviced IEWC products (the "Products") as follows:
- If you did not receive the Product you ordered, the Product is not functioning in accordance with the Product specifications, or there is visible shipping damage to the Product due to an IEWC freight carrier, IEWC will replace the Product at no cost to you. All such claims must be submitted to and approved by IEWC's customer support team within thirty (30) days of the Invoice date.
- If you longer need the Product, you can return it subject to IEWC restocking fees in place at the time of the return. For these returns, the customer is responsible for all shipping costs incurred. All such returns must be submitted to and approved by IEWC's customer support team within ninety (90) days of the invoice date.
All Product returns are subject to IEWC's complete return policy.
