22 AWG, Multi-conductor Electronic Cable, 12 Conductor, Red83562
IEWC Part #: 2212CSS-1BED
Manf. Part #:83562 002500
Manufacturer:Belden
Expected Country of Origin:US

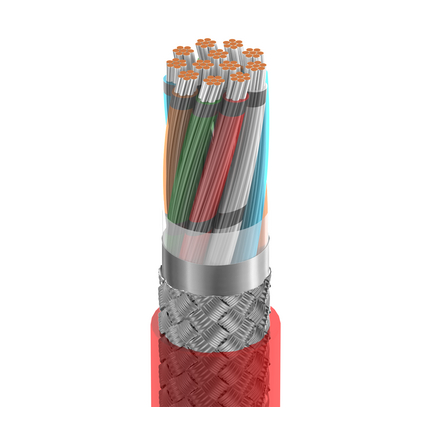

22 AWG stranded (7x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
Minimum order: 500 FT
Gauge Size 22 # of Conductors 12 Color RED Voltage 300V Overall Shielding Type ALUMINUM FOIL/POLYESTER TAPE Temperature 200C Jacket Material FEP Specification(s) CE, M39, NEC CMP Stranding 7 Conductor Metal TINNED COPPER Insulation Material FEP Conductor Type STRANDED # of Pairs 0 Armor Type NOT SPECIFIED Conductor Configuration CONDUCTORS Conductor Shielding Type NOT SPECIFIED Label Type UL CUL Manufacturer Belden Supplier Series 83562 UL Type CMP Customers can return standard, non-serviced IEWC products (the "Products") as follows:
