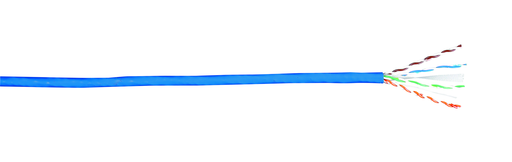

Cat 6 Networking Cable, Solid, Conductors and pairs
IEWC Part #: 2308P-3GCE1
Manufacturer:Approved Manufacturer
Expected Country of Origin:US
Cable; Type CMR; Conductor Size 23 AWG; Conductor Material Solid Bare Annealed Copper; Color Code Blue; Insulation Material Polyolefin; Jacket Material Low Smoke Flame Retardant PVC; Jacket Color Blue; Outer Diameter 0.205 Inch; Length 1000 Foot; Temperature Rating -20 to 105 Deg C; Application Digital Video, Broadband and Baseband Analog Video; Approval UL 444; RoHS Compliant; Bend Radius 1 Inch; Pulling Force 32 Pound; Category 6; Applicable Standard ANSI/TIA 568.2-D, NEC/CEC, ICEA S-116-732, ISO/IEC 11801
Add to cart to request quote
FT
Minimum order: 1000 FT
Gauge Size 23 # of Conductors 8 Color BLUE Voltage NOT SPECIFIED Overall Shielding Type NOT SPECIFIED Temperature 75C Jacket Material PVC Specification(s) ANSI/TIA 568-C.2, ANSI/TIA 862, NEC CMR, RoHS, UL 444 Stranding 1 Conductor Metal BARE COPPER Insulation Material POE # of Pairs 4 Armor Type NOT SPECIFIED Conductor Configuration CONDUCTORS AND PAIRS Conductor Shielding Type NOT SPECIFIED Conductor Type SOLID Manufacturer Approved Manufacturer - Prysmian: 7133800
