24 AWG, Multi-conductor Electronic Cable, 4 Conductor, Unshielded, Red83504
IEWC Part #: 2404CSS-1BEE-CN
Manf. Part #:83504 0021000
Manufacturer:Belden
Expected Country of Origin:US

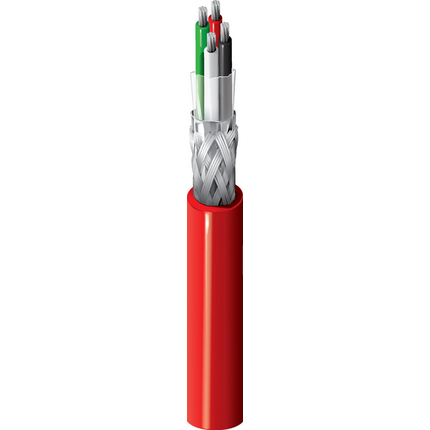

24 AWG stranded (7x32) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage), TC braid shield (85% coverage), FEP jacket.
Add to cart to request quote
FT
Minimum order: 1000 FT
Gauge Size 24 Specification(s) NEC CMP # of Conductors 4 Color RED Voltage 300V Temperature 200C Overall Shielding Type DOUBLE SHIELD Jacket Material FEP Stranding 7 Conductor Metal TINNED COPPER Insulation Material FEP Conductor Type STRANDED # of Pairs 0 Armor Type NONE Conductor Configuration CONDUCTORS Conductor Shielding Type UNSHIELDED Label Type UL CUL Manufacturer Belden Supplier Series 83504 UL Type CMP Customers can return standard, non-serviced IEWC products (the "Products") as follows:
