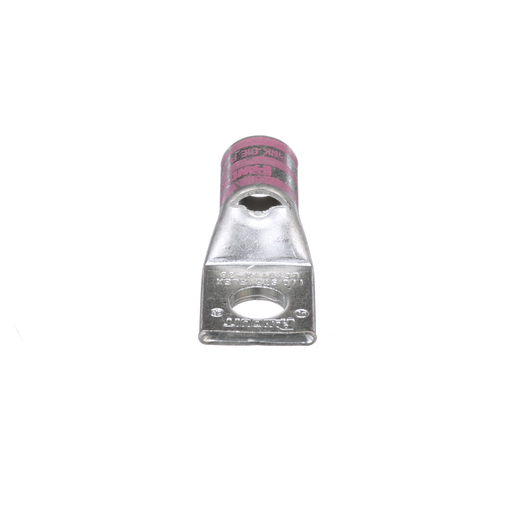

Uninsulated Lug, 1/0, 1.89", Tinned Plated Copper, Pink
IEWC Part #: LCAX1/0-38-X
Manf. Part #:LCAX1/0-38-X
Manufacturer:Panduit
Expected Country of Origin:US
The LCAX1/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
EA
Angle Straight Barrel Length Standard Barrel Color PINK Compatible Die Set P42 Compatible Tool NOT SPECIFIED Label Type LUGS Length 1.89" Manufacturer Panduit Material Tinned Plated Copper Max Temperature N/A Min Temperature N/A Specification(s) CSA, RoHS, UL Standard Package Quantity 50 Stud Size 0.38" Supplier Series LCAX Tongue Style One Hole Width 0.85" Wire Strip Length 0.75" Wire/Cable Gauge Size Max 1/0 Wire/Cable Gauge Size Min NOT SPECIFIED Customers can return standard, non-serviced IEWC products (the "Products") as follows:
