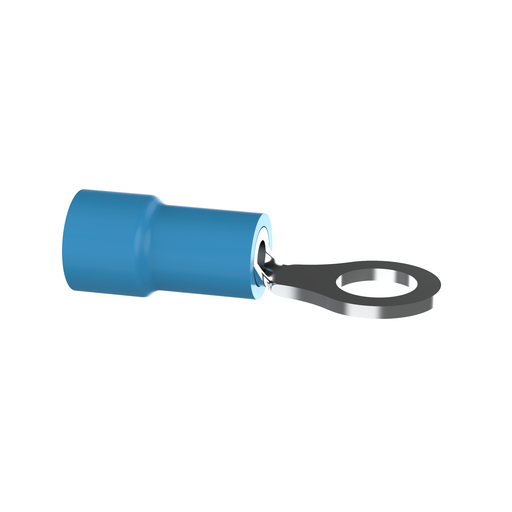

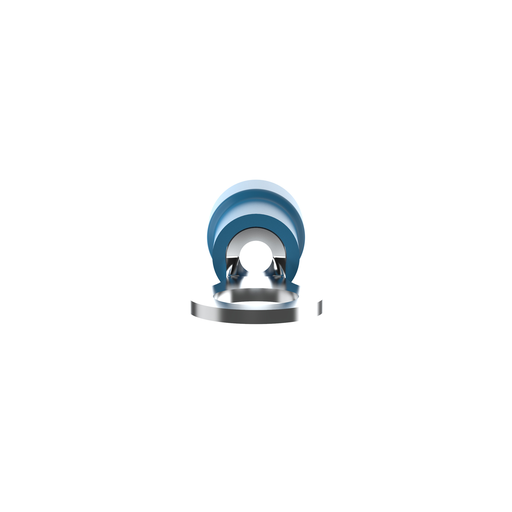

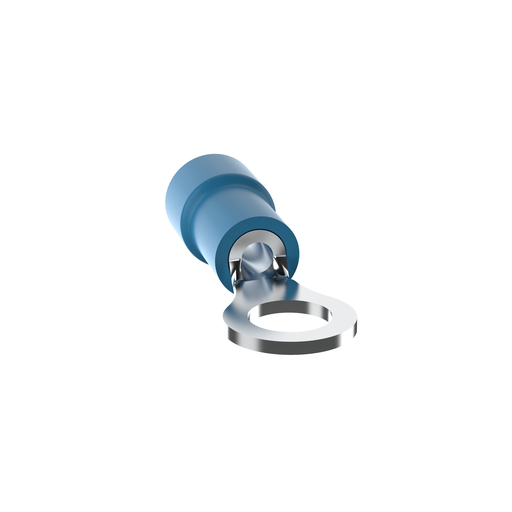

Insulated Ring Terminal, 14, 0.92", 600V, Tinned Copper, Blue
IEWC Part #: PV14-10R-M
Manf. Part #:PV14-10R-M
Manufacturer:Panduit
Expected Country of Origin:MX
The PV14-10R-M Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.
Add to cart to request quote
PC
Minimum order: 1000 PC
Purchase in Multiples of: 1000 PC
Color BLUE Compatible Tool CT-100A, CT-1550, CT-1551, CT-2500, CT-600-A Flammability Rating UL 94 V-0 Inner Diameter Max NOT SPECIFIED Insulation Material VINYL Length 0.92" Manufacturer Panduit Material Tinned Copper Max Temperature 105C Min Temperature NOT SPECIFIED Specification(s) CSA, RoHS, UL, UL 486A-486B Standard Package Quantity 1000 Stud Size #10 Supplier Series PV Voltage 600V Width 0.31" Wire/Cable Gauge Size Max 14 Wire/Cable Gauge Size Min 16 Customers can return standard, non-serviced IEWC products (the "Products") as follows:
