Alpha Wire EcoGen

BETTER PERFORMANCE IN A SMALL PACKAGE

Designed in a ligher, compact construction, Alpha Wire's EcoGen™ solutions support your application while ensuring maximum performance. EcoGen™ wires and cables also are:

Up to 47% smaller and 65% lighter than PVC alternatives
Up to 87% lower outgassing
Zero halogen
Capable of handling extreme temperatures of up to -50°C
100% recyclable
Meet REACH, RoHS and WEEE requirements

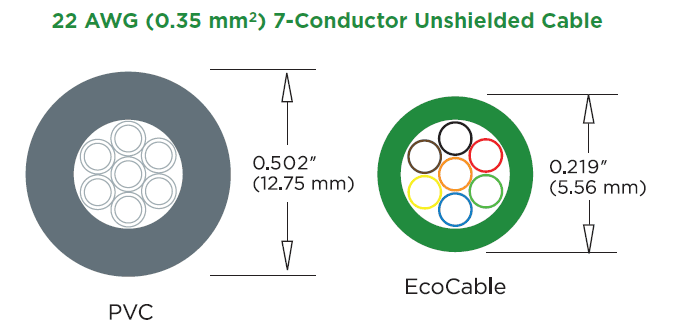

EcoGen cross-section diagram compared to PVC wire

The EcoGen Portfolio

EcoCable® Control Cable

Temperature:	-50°C to 105°C
Materials:	• Stranded tin-plated copper conductors • mPPE insulation • mPPE jacket, slate
Properities:	• Zero halogen • Specific gravity: 1.03 • 100% recyclable • Low outgassing • Suitable for use in NFPA 79 applications

EcoCable® Mini Cable

Temperature:	-40°C to + 80°C
Materials:	• Tinned copper conductors • mPPE insulation • mPPE jacket, slate
Properties:	• Zero halogen • Specific gravity: 1.03 • 100% recyclable • Low outgassing • Suitable for use in NFPA 79 applications

EcoFlex® Cable

Conductors:	Stranded tinned copper
Insulation:	mPPE
Jacket:	mPPE, Slate
Shielding:	Unshielded, foil shield, Supra-Shield® foil + braid
Voltage:	600 V
Configurations:	• Unshielded multiconductor • Braid shielded multiconductor • Supra-Shield® foil + braid shielded multiconductor • Custom configurations available
Properties:	• Up to 32% smaller and 55% lighter than PVC • Long flex life for machines with constant motion or flexing • Up to 91% lower outgassing • Contains no halogens, PVC, phthalates, or heavy metals • Exceptional EMI performance with Supra-Shield® foil + braid

EcoFlex® PUR Cable

Conductors:	Finely stranded tinned copper (IEC 60228 Conductors, Class 6)
Insulation:	mPPE
Jacket:	PUR, zero halogen, slate
Shielding:	Unshielded Tinned copper braid, 85% coverage
Voltage:	600 V (UL)
Temperature Range:	-40°C to + 80°C (dynamic) -50°C to + 90°C (static)
Configurations:	• Unshielded multiconductor • Braid shielded multiconductor • Custom configurationavailable
Properties:	• Up to 40% smaller and 44% lighter • Rated for over 8 million flex cycles • Flexible at low temperatures • Unshielded or braid shielding • 28 to 10 AWG • Zero halogen • Contains no heavy metals or phthalates • 2 to 36 conductors

EcoWire® Hook-Up Wire

Temperature Range:	-40°C to + 105°C (EcoWire) -40°C to + 110°C (EcoWire Plus)
Materials:	• Stranded or solid tinned copper conductors • mPPE insulation
Approvals:	• UL AWM 11028 VW-1 • CSA AWM I A/B FT1 • IEC 60332-2 Flame Behavior • RoHS Compliant • REACH Compliant • Zero Halogen • CE Compliant
Properties:	• Up to 45% smaller in diameter • Up to 40% lighter • Zero halogen, with no heavy metal pigments • 100% recyclable

EcoWire® Plus Hook-Up Wire

Temperature Range:	-40°C to + 105°C (EcoWire) -40°C to + 110°C (EcoWire Plus)
Materials:	• Stranded or solid tinned copper conductors • mPPE insulation
Approvals:	• IEC 60332-2 Flame Behavior • RoHS Compliant • REACH Compliant • Zero Halogen • CE Compliant • Suitable for ISO 6722
Properties:	• Up to 45% smaller in diameter • Up to 40% lighter • Zero halogen, with no heavy metal pigments • 100% recyclable

Contact IEWC to learn more about Alpha Wire's EcoGen prroducts!
